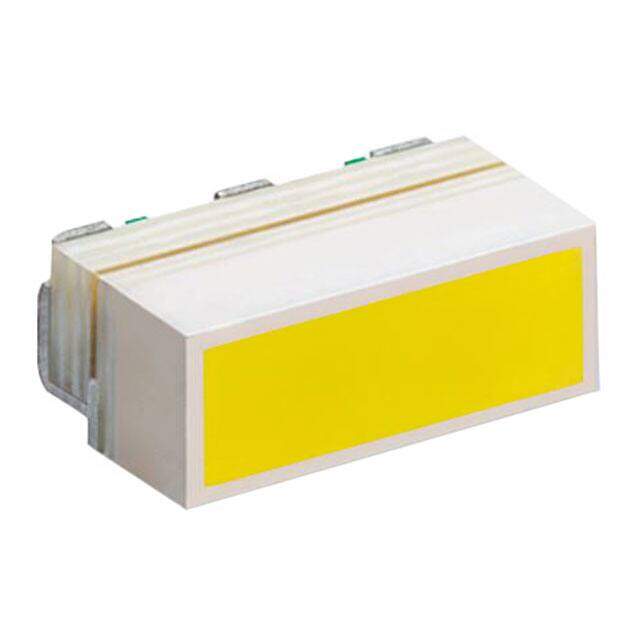

CLL630-0101B2-65CM1A2
RoHS
RoHS compliant
RoHS compliantPackage 0803 (2108 Metric)
Category Optoelectronics / LED Lighting - White
Description
SMD LED 6500K 80CRI 20.2LM
PDF
/
Inventory: 5062
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.045 1.15mm
Technical
Reverse Voltage-Max 5V
Flux @ 25°C, Current - Test 20lm Typ
Overall Height 0.8mm
Forward Voltage-Max 3.4V
Forward Current-Max 0.08A
CRI (Color Rendering Index) 80
CCT (K) 6500K 3-Step MacAdam Ellipse
Lumens/Watt @ Current - Test 108 lm/W
Current - Test 60mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120 °
Voltage - Forward (Vf) (Typ) 3.1V
Max Current Rating 80mA
Operating Temperature (Min) -30°C
Operating Temperature (Max) 85°C
Reach Compliance Code unknown
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Color White, Cool
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.079Lx0.032W 2.00mmx0.80mm
Published 2014
Packaging Tape & Reel (TR)
Physical
Thermal Resistance of Package 120°C/W
Package / Case 0803 (2108 Metric)
Mounting Type Surface Mount
Mount Surface Mount
