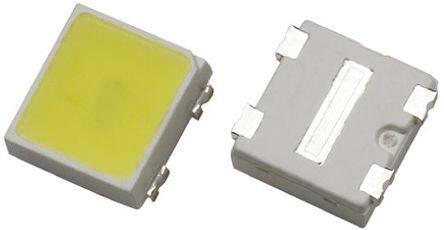

ASMT-QWBG-NFHAE
RoHS
/
Package 4-PLCC
Category Optoelectronics / LED Lighting - White
Description
BROADCOM LIMITED - ASMT-QWBG-NFHAE - LED, 0.5W, COOL WHITE 8000K, CRI 85
PDF
/
Inventory: 1948
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Silver
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-PLCC
Number of Pins 4
Thermal Resistance of Package 40°C/W
Technical
Packaging Tape & Reel (TR)
Published 2011
Series ASMT-QWBG
Size / Dimension 0.126Lx0.110W 3.20mmx2.80mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Color White, Cool
Subcategory Visible LEDs
Max Power Dissipation 640mW
Depth 3.2mm
Base Part Number ASMT-Q*BG
Number of Elements 1
Max Current Rating 180mA
Power Dissipation 640mW
Voltage - Forward (Vf) (Typ) 3.4V
Viewing Angle 120°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 180mA
Current - Test 150mA
Lens Style Rectangular, Square
Lumens/Watt @ Current - Test 106 lm/W
CCT (K) 8000K
Illumination Color White
Luminous Flux 48 lm
Flux @ 25°C, Current - Test 54lm 46lm~62lm
Flux @ 85°C, Current - Test 43lm
Color Rendering Index (CRI) 85
Dimensions
Height 1.1mm
Height Seated (Max) 0.083 2.10mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
