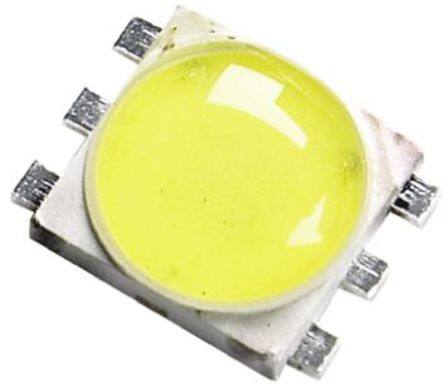

ASMT-JY33-NRS01
RoHS
/
Package 1616 (4040 Metric)
Category Optoelectronics / LED Lighting - White
Description
LED ASMT-JX3X WM WHT 3100K 6SMD
PDF
/
Inventory: 3516
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Height Seated (Max) 0.077 1.95mm
Height 1.85mm
Technical
Color Rendering Index (CRI) 90
Number of LEDs 1
Flux @ 85°C, Current - Test 46lm
Flux @ 25°C, Current - Test 54lm 40lm~67lm
Forward Voltage-Max 3.5V
Luminous Flux 60 lm
Lens Color Clear
Illumination Color White
CCT (K) 3100K (2700K ~ 3500K)
Lumens/Watt @ Current - Test 48 lm/W
Lens Style Circular, Round
Forward Current 350mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 140°
Voltage - Forward (Vf) (Typ) 3.2V
Max Current Rating 700mA
Configuration SINGLE
Base Part Number ASMT-JY33
Terminal Pitch 4.35mm
Number of Functions 1
Max Power Dissipation 2.73W
Packing Method TAPE AND REEL
Subcategory Visible LEDs
Color White, Warm
Min Operating Temperature -40°C
Max Operating Temperature 120°C
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e4
Size / Dimension 0.157Lx0.157W 4.00mmx4.00mm
Series ASMT-Jx3x
Published 2011
Packaging Tape & Reel (TR)
Physical
Thermal Resistance of Package 9°C/W
Number of Pins 6
Package / Case 1616 (4040 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Silver
