LXML-PB02
RoHS
RoHS compliant
RoHS compliantPackage 1812 (4532 Metric)
Category Optoelectronics / LED Lighting - Color
Description

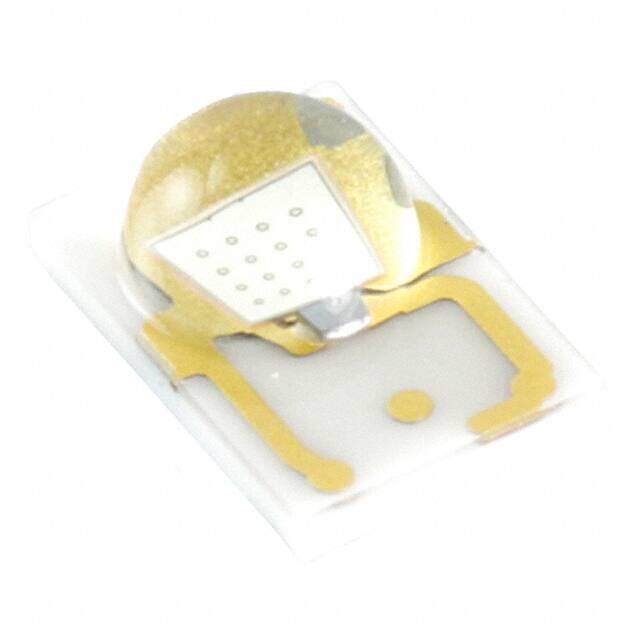

LXML-PB02; LUXEON Rebel ES Series Blue High-Power LED; 3-Pin; Round Lens
PDF
/
Inventory: 9430
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Power Rating 74mW
Number of Functions 1
Configuration SINGLE
Voltage - Forward (Vf) (Typ) 2.95V
Viewing Angle 125°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 1A
Current - Test 700mA
Lens Style Dome, Round
Lumens/Watt @ Current - Test 32 lm/W
Temperature - Test 25°C
Flux @ Current/Temperature - Test 67lm 50lm~83lm
Lens Color Blue, Clear
Luminous Flux 58 lm
Wavelength 470nm Typ
Number of LEDs 1
Additional Feature UL RECOGNIZED
Color Blue
Min Operating Temperature -40°C
Max Operating Temperature 135°C
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.177Lx0.120W 4.49mmx3.05mm
Series LUXEON Rebel Color ES
Published 2010
Packaging Cut Tape (CT)
Max Junction Temperature (Tj) 150°C
Physical
Thermal Resistance of Package 10°C/W
Number of Pins 3
Package / Case 1812 (4532 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Height Seated (Max) 0.083 2.10mm
Height 2.1mm
