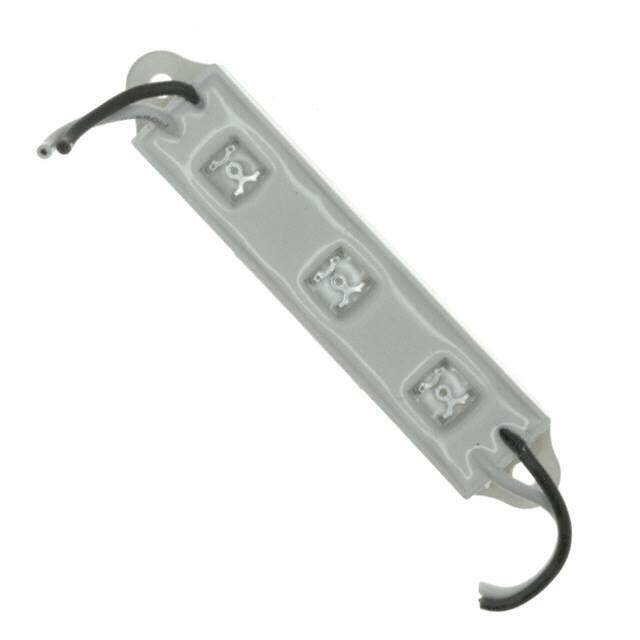

OVM12F3G7
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED MODULE 3POS GREEN IP67 CLEAR
PDF
/
Inventory: 8800
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Screw
Package / Case Module
Number of Pins 2
Housing Material Plastic
Technical
Published 2016
Size / Dimension 73.30mm Lx17.80mm W
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type LED Engine
Max Operating Temperature 50°C
Min Operating Temperature -30°C
Color Green
Voltage - Rated 15V
Power Rating 300mW
Depth 17.8mm
Operating Supply Voltage 12V
Number of Elements 30
Configuration Linear Light Strip, Plug and Play
Max Current Rating 25mA
Power Dissipation 1.5W
Viewing Angle 120°
Current - Test 25mA
Lens Style Flat
Forward Voltage 12V
Current - Max 25mA
Lens Type Flat
Illumination Color Green
Power Consumption 300mW
Luminous Flux 14 lm
Wavelength 525nm
Dominant Wavelength 525 nm
Dimensions
Height 11.50mm
Length 73.3mm
Width 17.8mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings IP67
