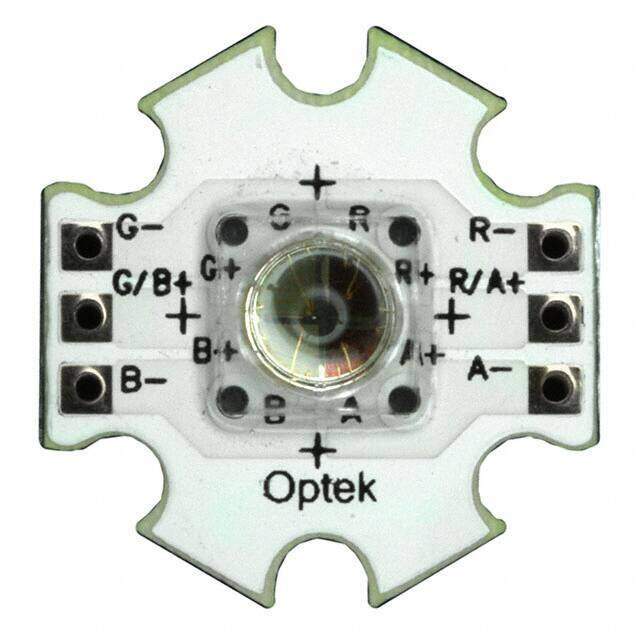

OV4ZRGBA
RoHS
/
Package /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED OPTML IV STAR RD/GRN/BLU/AMB
PDF
/
Inventory: 7584
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Number of Pins 6
Technical
Packaging Tube
Published 2008
Series Optimal IV Star
Size / Dimension 21.00mm Dia
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type LED Module
Max Operating Temperature 100°C
Min Operating Temperature -50°C
Color Red, Green, Blue, Amber (RGBA)
Power Rating 1W
Max Power Dissipation 1W
Configuration Starboard
Max Current Rating 700mA
Power Dissipation 1W
Voltage - Forward (Vf) (Typ) 2.5V Red 3.9V Green 3.6V Blue 2.5V Amber
Viewing Angle 60°
Forward Current 350mA
Current - Test 350mA Red 350mA Green 350mA Blue 350mA Amber
Lens Style Dome, Domed
Lumens/Watt @ Current - Test 40 lm/W Red 22 lm/W Green 4 lm/W Blue 41 lm/W Amber
Forward Voltage 3.9V
Current - Max 700mA Red 700mA Green 700mA Blue 700mA Amber
Lens Type Domed
Illumination Color Orange
Temperature - Test 25°C
Flux @ Current/Temperature - Test 35lm Typ Red 30lm Typ Green 5lm Typ Blue 36lm Typ Amber
Luminous Flux 5 lm
Wavelength 625nm Red 522nm Green 455nm Blue 585nm Amber
Number of LEDs 4
Reverse Voltage (DC) 5V
Dimensions
Height 5.00mm
Length 21mm
Width 20mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
