OPA730W
RoHS
/
Package Module
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description

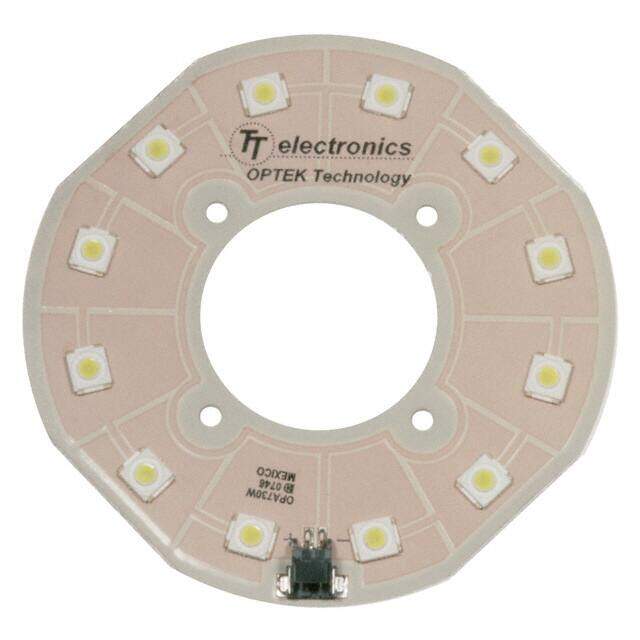

LED WHITE 12/1WATT 6500K ARRAY
PDF
/
Inventory: 3626
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 51 Weeks
Physical
Mount Screw
Package / Case Module
Technical
Published 2007
Series OPA730
Size / Dimension 85.10mm Dia
Feature With Connector
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type LED Module
Color White, Cool
Voltage - Rated 21.6V
Power Rating 12W
Depth 88.9mm
Current Rating 700mA
Operating Supply Voltage 21.6V
Number of Elements 12
Configuration Ring (Disc)
Max Current Rating 700mA
Viewing Angle 120°
Forward Current 700mA
Lumens/Watt @ Current - Test 38 lm/W
CCT (K) 6500K
Luminous Intensity 45.83 mcd
Lens Type Flat
Illumination Color White
Temperature - Test 25°C
Flux @ Current/Temperature - Test 576lm Typ
Power Consumption 12W
Luminous Flux 576 lm
Dimensions
Height 1.52mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
