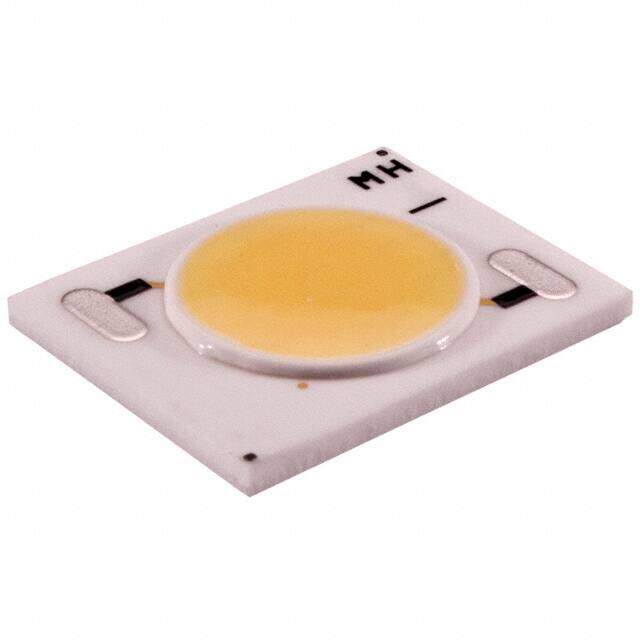

GW6BGW27HED
RoHS
/
Package SMD/SMT
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED COB MINI ZENIGATA WARM WHT
PDF
/
Inventory: 3304
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 12mm
Length 6.5mm
Height 1.60mm
Technical
Number of LEDs 36
Luminous Flux 615 lm
Illumination Color White
Lens Type Flat
Current - Max 390mA
Forward Voltage 36V
CRI (Color Rendering Index) 90
CCT (K) 2700K
Lens Style Circular, Colored, Flat
Current - Test 240mA
Forward Current 240mA
Voltage - Forward (Vf) (Typ) 36V
Max Current Rating 390mA
Configuration Rectangle
Color White, Warm
Type Chip On Board (COB)
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Size / Dimension 6.50mm Lx15.00mm W
Series Mini Zenigata
Published 2012
Packaging Tray
Physical
Package / Case SMD/SMT
