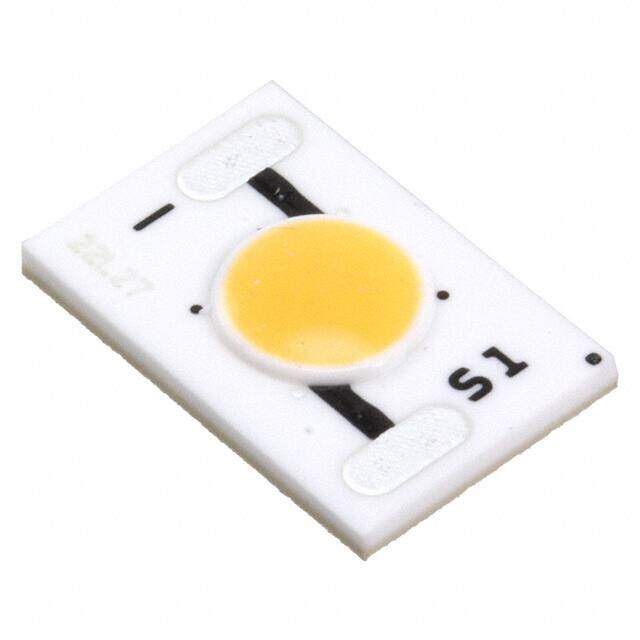

GW5SMB30P0C image
Favorite
GW5SMB30P0C image
Favorite
RoHS
/
Package SMD/SMT
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description LED COB PETITE ZENIGATA WARM WHT
PDF
/
Inventory: 5455
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Package / Case SMD/SMT
Number of Pins 2

Technical

Packaging Tray
Published 2012
Series Petite Zenigata
Size / Dimension 8.00mm Lx12.00mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Type Chip On Board (COB)
Max Operating Temperature 100°C
Min Operating Temperature -30°C
Color White, Warm
Depth 8mm
Number of Elements 6
Configuration Rectangle
Max Current Rating 380mA
Power Dissipation 4.4W
Voltage - Forward (Vf) (Typ) 10.3V
Forward Current 1.7A
Current - Test 350mA
Lens Style Circular, Flat
Lumens/Watt @ Current - Test 78 lm/W
CCT (K) 3000K
CRI (Color Rendering Index) 80
Forward Voltage 10.3V
Current - Max 380mA
Lens Type Flat
Illumination Color White
Temperature - Test 25°C
Flux @ Current/Temperature - Test 280lm Typ
Luminous Flux 280 lm
Reverse Voltage -15V
Number of LEDs 6

Dimensions

Height 1.80mm
Length 12mm
Width 12mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
