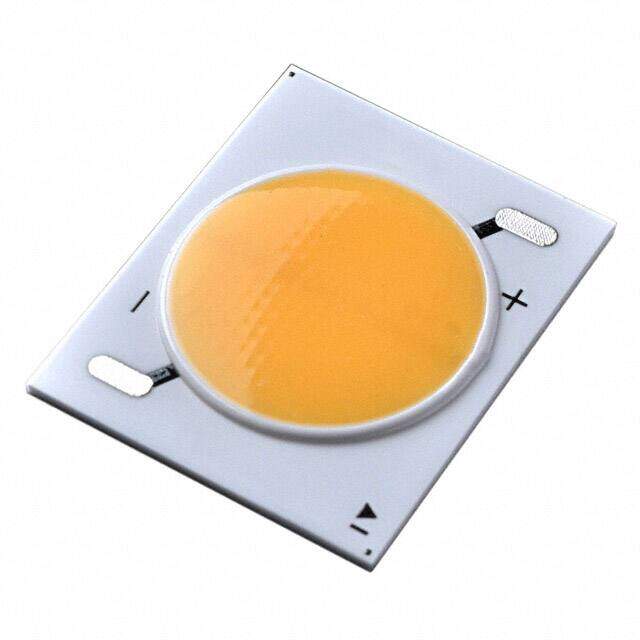

GW5DGA50M04 image
Favorite
GW5DGA50M04 image
Favorite
RoHS
/
Package /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description LED Lighting Modules 15W Meg Zenigata 5000K 1250LM 90CRI
PDF
/
Inventory: 3445
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 20mm
Length 24mm
Height 1.80mm

Technical

Number of LEDs 96
Reverse Voltage -15V
Luminous Flux 1.25 klm
Flux @ Current/Temperature - Test 1250lm Typ
Temperature - Test 25°C
Illumination Color White
Lens Type Flat
Current - Max 700mA
Forward Voltage 37V
CRI (Color Rendering Index) 90 (Typ)
CCT (K) 5000K
Lumens/Watt @ Current - Test 84 lm/W
Lens Style Flat, Rectangular
Current - Test 400mA
Forward Current 400mA
Viewing Angle 120 °
Voltage - Forward (Vf) (Typ) 37V
Power Dissipation 28W
Max Current Rating 700mA
Configuration Square
Number of Elements 96
Operating Supply Voltage 37V
Depth 20mm
Power Rating 15W
Color White, Cool
Min Operating Temperature -30°C
Max Operating Temperature 100°C
Type Chip On Board (COB)
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Size / Dimension 20.00mm Lx24.00mm W
Packaging Tray

Physical

Number of Pins 2
