GW5BNF15L10
RoHS
/
Package Module
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description

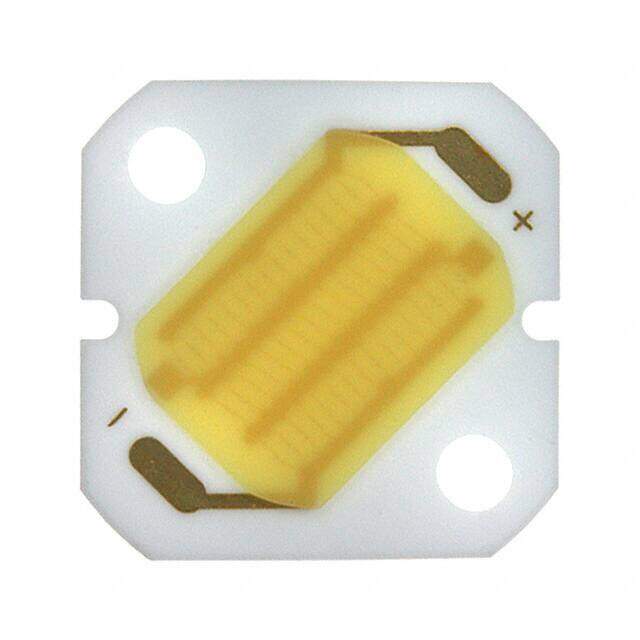

SHARP GW5BNF15L10 LED Module, Board + LED, Cool White, 7000 K, 350 lm
PDF
/
Inventory: 4796
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Screw
Package / Case Module
Number of Pins 2
Technical
Packaging Tray
Published 1998
Size / Dimension 18.00mm Lx18.00mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Type Chip On Board (COB)
Max Operating Temperature 90°C
Min Operating Temperature -30°C
Color White, Cool
Power Rating 6.7W
Number of Functions 1
Depth 18mm
Operating Supply Voltage 10.2V
Number of Elements 48
Configuration Square
Max Current Rating 700mA
Power Dissipation 8W
Viewing Angle 120 °
Forward Current 700mA
Current - Test 640mA
Lens Style Flat, Rectangular
Lumens/Watt @ Current - Test 54 lm/W
CCT (K) 6500K
Lens Type Flat
Illumination Color White
Temperature - Test 25°C
Flux @ Current/Temperature - Test 350lm Typ
Luminous Flux 350 lm
Reverse Voltage -15V
Color Rendering Index (CRI) 90
Dimensions
Height 2.00mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
