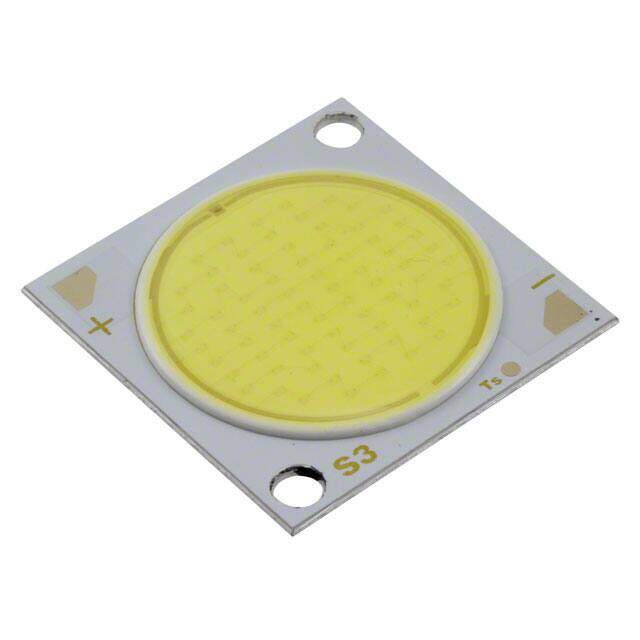

SDW84F1C-J1/J2-EA image
Favorite
SDW84F1C-J1/J2-EA image
Favorite

SDW84F1C-J1/J2-EA

Seoul Semiconductor Inc.
RoHS
RoHS RoHS compliant
Package SMD/SMT
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description LED NEUTRAL WHT 4000K 700MA SMD
PDF
/
Buying Options
Total Price: USD $17.46
Unit Price: USD $17.461247
≥1 USD $17.461247
≥10 USD $16.47287
≥100 USD $15.540441
≥500 USD $14.660799
≥1000 USD $13.830946
Inventory: 1177
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Package / Case SMD/SMT

Technical

Packaging Tray
Published 2014
Series ZC25 Z-Power COB
Size / Dimension 28.00mm Lx28.00mm W
Part Status Active
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Type Chip On Board (COB)
Color White, Neutral
Configuration Square
Max Current Rating 960mA
Voltage - Forward (Vf) (Typ) 37V
Viewing Angle 120°
Current - Test 700mA
Lens Style Circular, Flat
Lumens/Watt @ Current - Test 131 lm/W
CCT (K) 4000K
CRI (Color Rendering Index) 80
Forward Voltage 37V
Current - Max 960mA
Lens Type Flat
Temperature - Test 25°C
Flux @ Current/Temperature - Test 3400lm Typ
Number of LEDs 72

Dimensions

Height 2.30mm
Length 28mm
Width 28mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
