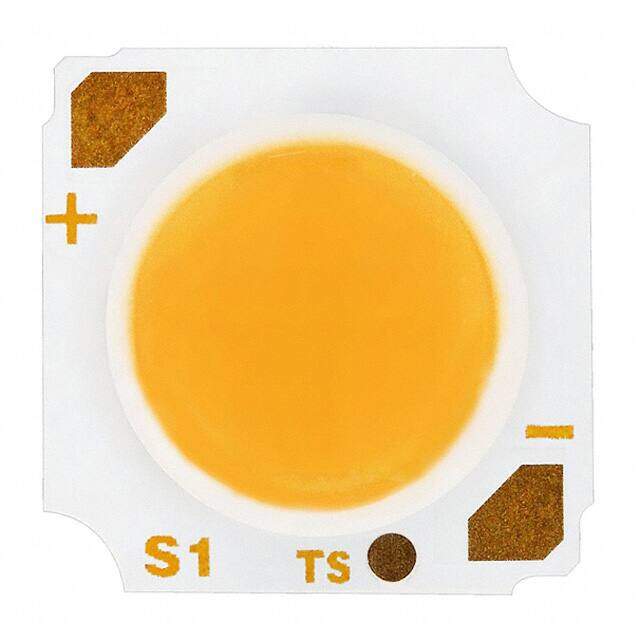

SDW01F1C-D/E-CA
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED COOL WHITE 5000K 180MA SMD
PDF
/
Buying Options
Total Price: USD $5.25
Unit Price: USD $5.2536
≥1 USD $5.2536
≥10 USD $3.71419
≥100 USD $3.04216
Inventory: 332
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Package / Case SMD/SMT
Technical
Packaging Tray
Published 2013
Series ZC6 Z-Power COB
Size / Dimension 13.50mm Lx13.50mm W
Part Status Active
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Type Chip On Board (COB)
Color White, Cool
Configuration Square
Max Current Rating 320mA
Voltage - Forward (Vf) (Typ) 37V
Viewing Angle 120°
Current - Test 180mA
Lens Style Circular, Flat
Lumens/Watt @ Current - Test 131 lm/W
CCT (K) 5000K
CRI (Color Rendering Index) 70
Forward Voltage 37V
Current - Max 320mA
Lens Type Flat
Temperature - Test 25°C
Flux @ Current/Temperature - Test 870lm Typ
Number of LEDs 24
Dimensions
Height 2.30mm
Length 13.5mm
Width 13.5mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Alternative Model
