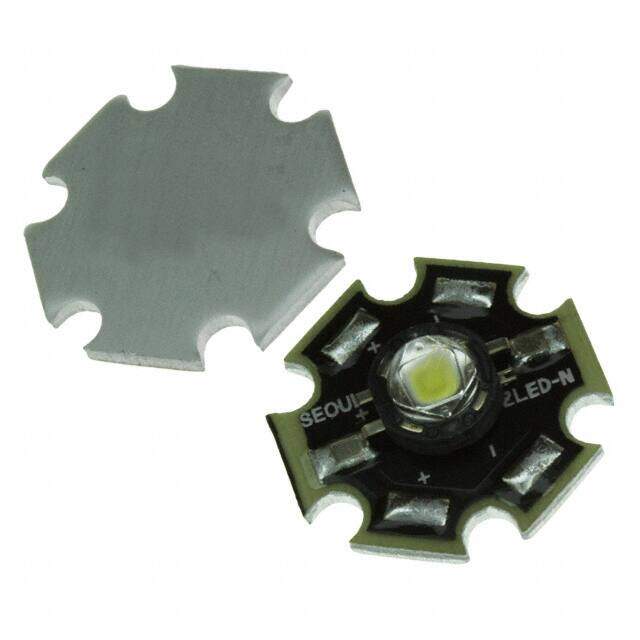

N42182-S2
RoHS
/
Package SMD/SMT
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED WARM WHITE 3000K STARBOARD
PDF
/
Inventory: 1969
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height 6.78mm
Technical
Number of LEDs 1
Light Emitting Surface (LES) 5.60mm Dia
Luminous Flux 53 lm
Flux @ Current/Temperature - Test 66lm Typ
Temperature - Test 25°C
Lens Type Domed
Current - Max 800mA
Forward Voltage 3.25V
CRI (Color Rendering Index) 93 (Typ)
CCT (K) 3000K
Lumens/Watt @ Current - Test 58 lm/W
Lens Style Circular, Domed
Current - Test 350mA
Viewing Angle 124°
Voltage - Forward (Vf) (Typ) 3.25V
Max Current Rating 800mA
Configuration Starboard
Color White, Warm
Type LED Module
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Obsolete
Size / Dimension 19.90mm Dia
Series Z Power, P4
Published 2010
Packaging Tape & Reel (TR)
Physical
Number of Pins 2
Package / Case SMD/SMT
