AW3211
RoHS
/
Package Module
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description

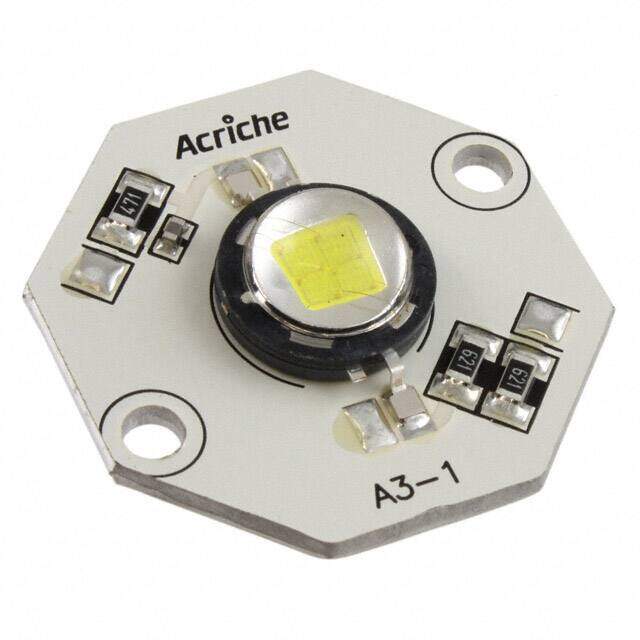

SEOUL SEMICONDUCTOR AW3211 LED Module, Board + LED, Cool White, 6300 K, 260 lm
PDF
/
Inventory: 1493
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Height 8.14mm
Diameter 30mm
Technical
Number of LEDs 1
Luminous Flux 260 lm
Flux @ Current/Temperature - Test 215lm Typ
Temperature - Test 25°C
Illumination Color White
Lens Type Domed
Forward Voltage 100V
CRI (Color Rendering Index) 65 (Typ)
CCT (K) 6300K
Lens Style Circular, Domed
Forward Current 40mA
Viewing Angle 130°
Power Dissipation 4W
Max Current Rating 40mA
Configuration Starboard
Operating Supply Voltage 110V
Number of Functions 1
Max Power Dissipation 4W
Packing Method TAPE AND REEL
Power Rating 4W
Color White, Cool
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type LED Engine
Number of Terminations 2
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Obsolete
Size / Dimension 30.00mm Lx30.00mm W
Series Acriche A2
Published 2008
Packaging Digi-Reel?
Physical
Shape ROUND
Number of Pins 2
Package / Case Module
Mount Screw, Surface Mount
