AN4212
RoHS
/
Package Module
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description

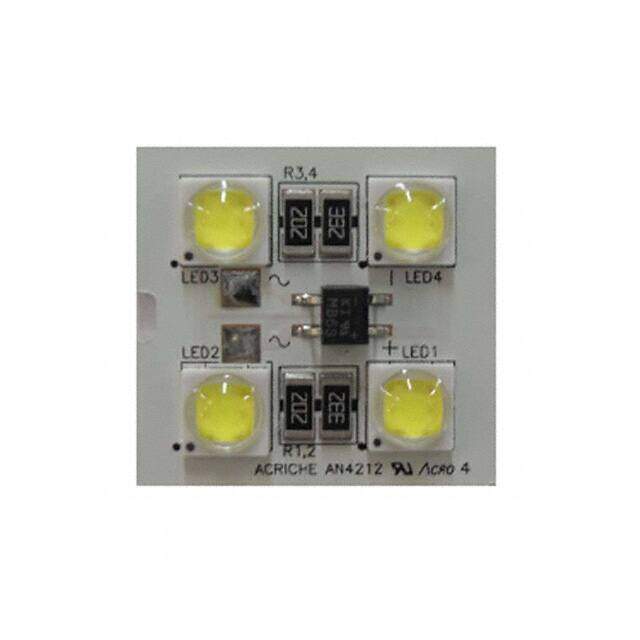

SEOUL SEMICONDUCTOR AN4212 LED Module, Acriche A4 Series, Board + LED, Warm White, 3000 K, 200 lm
PDF
/
Inventory: 2812
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Package / Case Module
Shape Square
Technical
Published 2009
Series Acrich A4
Size / Dimension 30.00mm Lx30.00mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Type LED Engine
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Color White, Warm
Power Rating 4W
Max Power Dissipation 4W
Operating Supply Voltage 110V
Configuration Square
Max Current Rating 40mA
Forward Current 40mA
Current - Test 40mA
Lens Style Circular
CCT (K) 3000K
CRI (Color Rendering Index) 85 (Typ)
Forward Voltage 110V
Lens Type Domed
Illumination Color White
Temperature - Test 25°C
Flux @ Current/Temperature - Test 200lm Typ
Power Consumption 4W
Luminous Flux 200 lm
Number of LEDs 4
Dimensions
Length 30mm
Width 30mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
