SL-B8T7NK0L2WW
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description

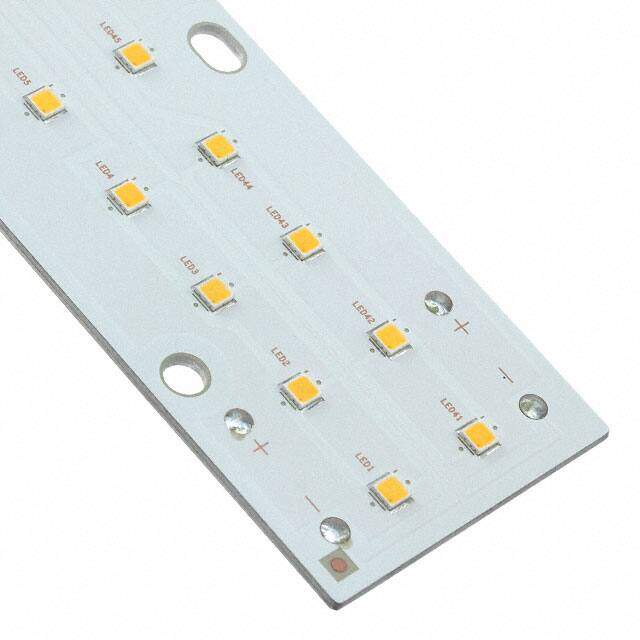

LED MODULE LT-F564A 4000K STRIP
PDF
/
Inventory: 8462
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Technical
Packaging Bulk
Published 2015
Series LT-F564A
Size / Dimension 558.80mm Lx40.00mm W
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type LED Module
Color White, Neutral
Configuration Linear Light Strip
Max Current Rating 1.5A
Voltage - Forward (Vf) (Typ) 49.6V
Current - Test 1.5A
Lens Style Flat
Lumens/Watt @ Current - Test 119 lm/W
CCT (K) 4000K 4-Step MacAdam Ellipse
CRI (Color Rendering Index) 80
Forward Voltage 48V
Lens Type Flat
Temperature - Test 25°C
Flux @ Current/Temperature - Test 8850lm Typ
Dimensions
Height 5.90mm
Length 558.8mm
Width 40mm
Compliance
RoHS Status RoHS Compliant
