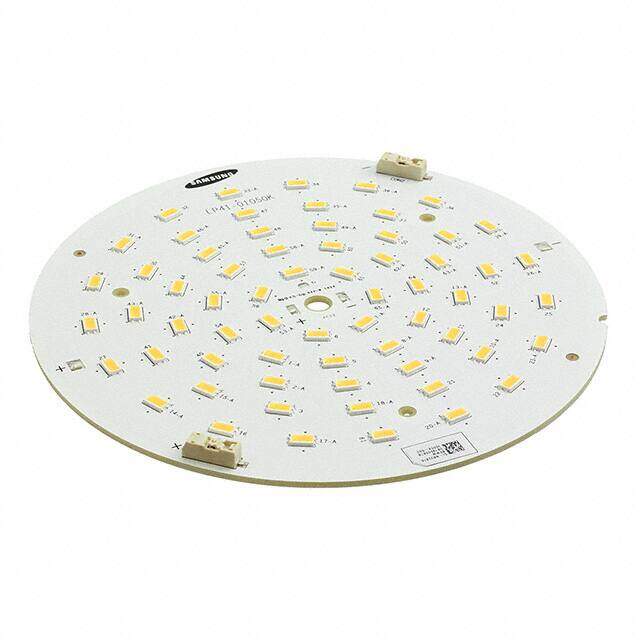

SI-N8V2816B0WW
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED 3000K 80CRI LM561B
PDF
/
Inventory: 4719
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 5.80mm
Technical
Flux @ Current/Temperature - Test 3330lm Typ
Temperature - Test 55°C
Lens Type Flat
Current - Max 750mA
Forward Voltage 39.7V
CRI (Color Rendering Index) 80
CCT (K) 3000K 4-Step MacAdam Ellipse
Lumens/Watt @ Current - Test 120 lm/W
Lens Style Flat
Current - Test 700mA
Viewing Angle 115°
Voltage - Forward (Vf) (Typ) 39.7V
Max Current Rating 750mA
Configuration Round
Color White, Warm
Type LED Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature With Connector
Size / Dimension 130.00mm Dia
Series Round-130C
Published 2014
Packaging Box
Supply Chain
Factory Lead Time 8 Weeks
