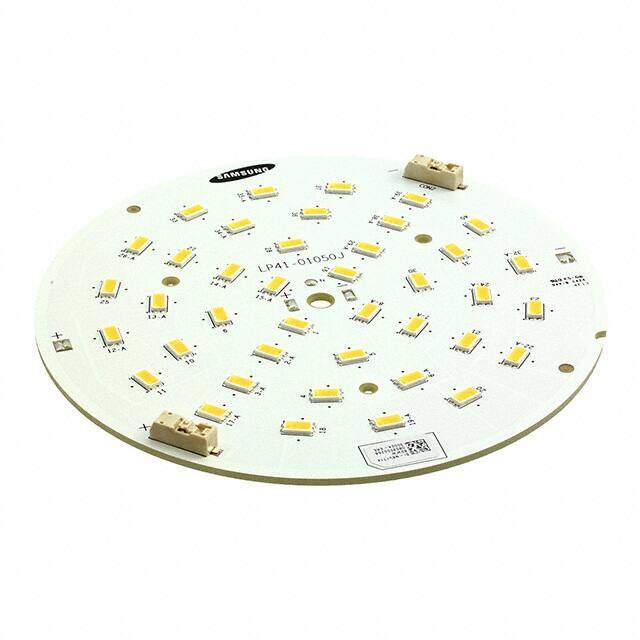

SI-N8V1714B0WW
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED 3000K 80CRI LM561B
PDF
/
Inventory: 3359
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Technical
Packaging Box
Published 2014
Series Round-110C
Size / Dimension 110.00mm Dia
Feature With Connector
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type LED Module
Color White, Warm
Configuration Round
Max Current Rating 750mA
Voltage - Forward (Vf) (Typ) 25V
Viewing Angle 115°
Current - Test 700mA
Lens Style Flat
Lumens/Watt @ Current - Test 120 lm/W
CCT (K) 3000K 4-Step MacAdam Ellipse
CRI (Color Rendering Index) 80
Forward Voltage 25V
Current - Max 750mA
Lens Type Flat
Temperature - Test 55°C
Flux @ Current/Temperature - Test 2050lm Typ
Dimensions
Height 5.80mm
Compliance
RoHS Status RoHS Compliant
