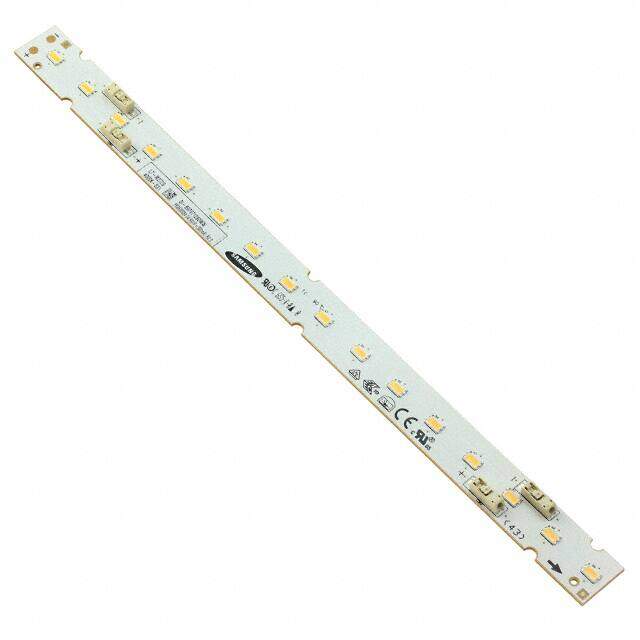

SI-B9T071280WW
RoHS
/
Package /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED 4000K 90CRI LM561B
PDF
/
Inventory: 1901
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Packaging Tray
Published 2015
Series LT-M272G
Size / Dimension 275.00mm Lx18.00mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type LED Module
Color White, Neutral
Configuration Linear Light Strip
Max Current Rating 360mA
Voltage - Forward (Vf) (Typ) 24V
Viewing Angle 115°
Current - Test 300mA
Lens Style Flat
Lumens/Watt @ Current - Test 108 lm/W
CCT (K) 4000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index) 90
Forward Voltage 24V
Current - Max 360mA
Lens Type Flat
Temperature - Test 50°C
Flux @ Current/Temperature - Test 775lm Typ
Dimensions
Height 5.80mm
Length 275mm
Width 18mm
Compliance
RoHS Status RoHS Compliant
