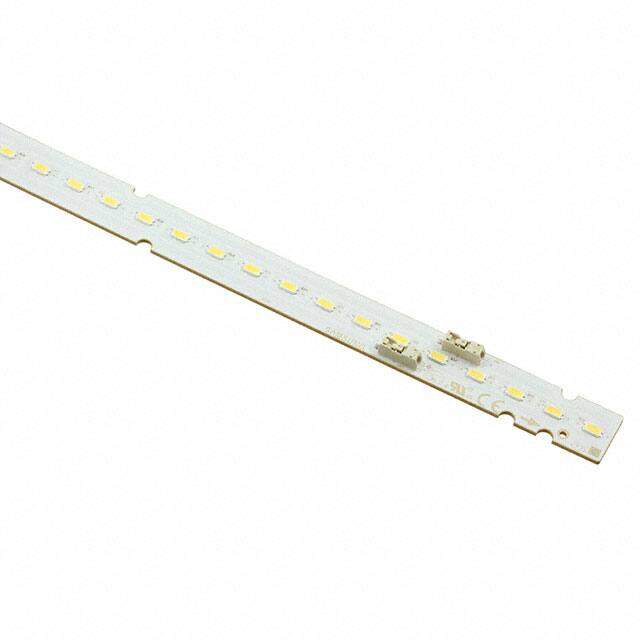

SI-B8V11156HUS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED MOD LTH562D WARM WHT STRIP
PDF
/
Buying Options
Total Price: USD $10.62
Unit Price: USD $10.6216
≥1 USD $10.6216
≥10 USD $8.01064
Inventory: 216
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Technical
Packaging Bulk
Published 2016
Series LT-H562D
Size / Dimension 560.00mm Lx18.00mm W
Feature With Connector
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type LED Module
Color White, Warm
Configuration Linear Light Strip
Voltage - Forward (Vf) (Typ) 22.5V
Current - Test 480mA
Lens Style Flat
Lumens/Watt @ Current - Test 179 lm/W
CCT (K) 3000K
CRI (Color Rendering Index) 80
Forward Voltage 22.5V
Lens Type Flat
Temperature - Test 50°C
Flux @ Current/Temperature - Test 1930lm Typ
Dimensions
Height 5.80mm
Length 560mm
Width 18mm
Compliance
RoHS Status RoHS Compliant
