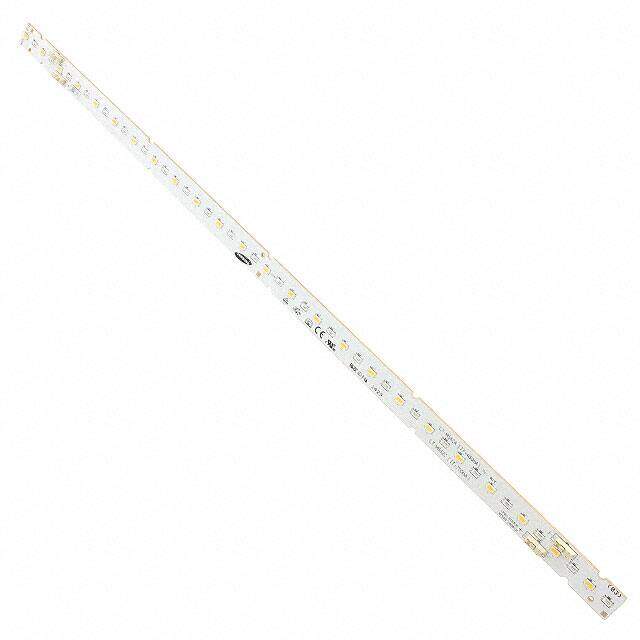

SI-B8V111560WW
RoHS
/
Package /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED 3000K 80CRI LM561B
PDF
/
Inventory: 9659
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 18mm
Length 560mm
Height 5.80mm
Technical
Flux @ Current/Temperature - Test 1460lm Typ
Temperature - Test 50°C
Lens Type Flat
Current - Max 450mA
Forward Voltage 24.7V
CRI (Color Rendering Index) 80
CCT (K) 3000K 3-Step MacAdam Ellipse
Lumens/Watt @ Current - Test 132 lm/W
Lens Style Flat
Current - Test 450mA
Viewing Angle 115°
Voltage - Forward (Vf) (Typ) 24.7V
Max Current Rating 450mA
Configuration Linear Light Strip
Color White, Warm
Type LED Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature With Connector
Size / Dimension 560.00mm Lx18.00mm W
Series LT-M562A
Published 2014
Packaging Tray
