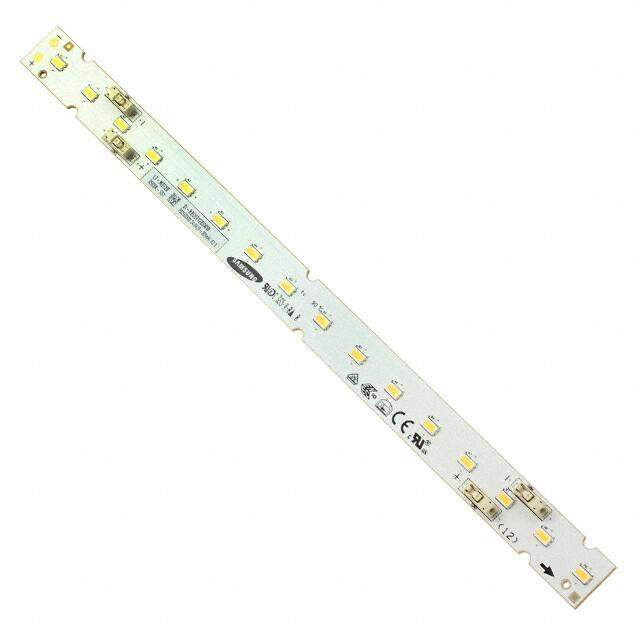

SI-B8U071280WW
RoHS
/
Package /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED 3500K 80CRI LM561B
PDF
/
Inventory: 6063
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 18mm
Length 275mm
Height 5.80mm
Technical
Flux @ Current/Temperature - Test 961lm Typ
Temperature - Test 50°C
Lens Type Flat
Current - Max 360mA
Forward Voltage 24V
CRI (Color Rendering Index) 80
CCT (K) 3500K
Lumens/Watt @ Current - Test 133 lm/W
Lens Style Flat
Current - Test 300mA
Viewing Angle 115°
Voltage - Forward (Vf) (Typ) 24V
Max Current Rating 360mA
Configuration Linear Light Strip
Color White, Warm
Type LED Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 275.00mm Lx18.00mm W
Series LT-M272B
Published 2015
Packaging Tray
