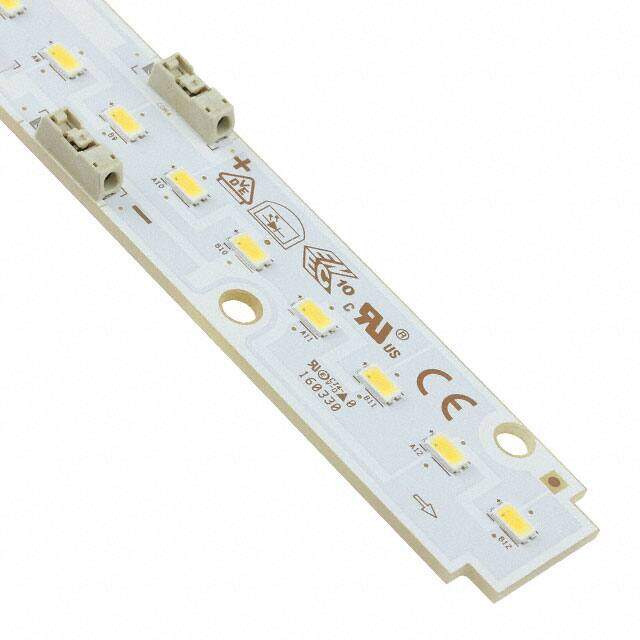

SI-B8T071280LD
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED SLIM 4000K 1120LM FRONT WIRE
PDF
/
Inventory: 9317
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Technical
Packaging Tray
Published 2015
Series LT-S282N
Size / Dimension 280.00mm Lx24.00mm W
Feature With Connector
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type LED Module
Color White, Neutral
Configuration Linear Light Strip
Max Current Rating 360mA
Voltage - Forward (Vf) (Typ) 35.2V
Viewing Angle 115°
Current - Test 200mA
Lens Style Flat
Lumens/Watt @ Current - Test 159 lm/W
CCT (K) 4000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index) 80
Forward Voltage 35.2V
Current - Max 360mA
Lens Type Flat
Temperature - Test 50°C
Flux @ Current/Temperature - Test 1120lm Typ
Dimensions
Height 5.80mm
Length 280mm
Width 24mm
Compliance
RoHS Status RoHS Compliant
