SI-B8R072280WW
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description

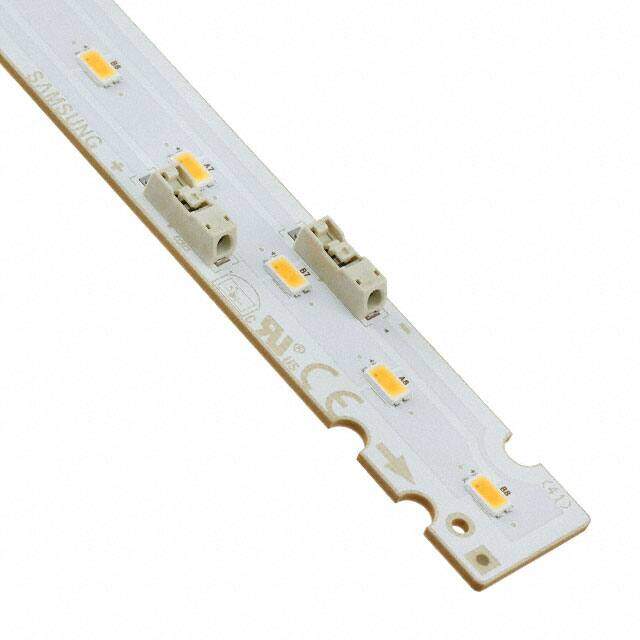

LED MOD LTM282BG2 COOL WHT STRIP
PDF
/
Inventory: 8478
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Technical
Packaging Tray
Published 2016
Series LT-M282B_G2
Size / Dimension 275.00mm Lx18.00mm W
Feature With Connector
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type LED Module
Color White, Cool
Configuration Linear Light Strip
Max Current Rating 360mA
Voltage - Forward (Vf) (Typ) 24.8V
Viewing Angle 115°
Current - Test 300mA
Lens Style Flat
Lumens/Watt @ Current - Test 148 lm/W
CCT (K) 5000K 4-Step MacAdam Ellipse
CRI (Color Rendering Index) 80
Forward Voltage 24.8V
Current - Max 360mA
Lens Type Flat
Temperature - Test 50°C
Flux @ Current/Temperature - Test 1100lm Typ
Dimensions
Height 4.40mm
Length 275mm
Width 18mm
Compliance
RoHS Status RoHS Compliant
