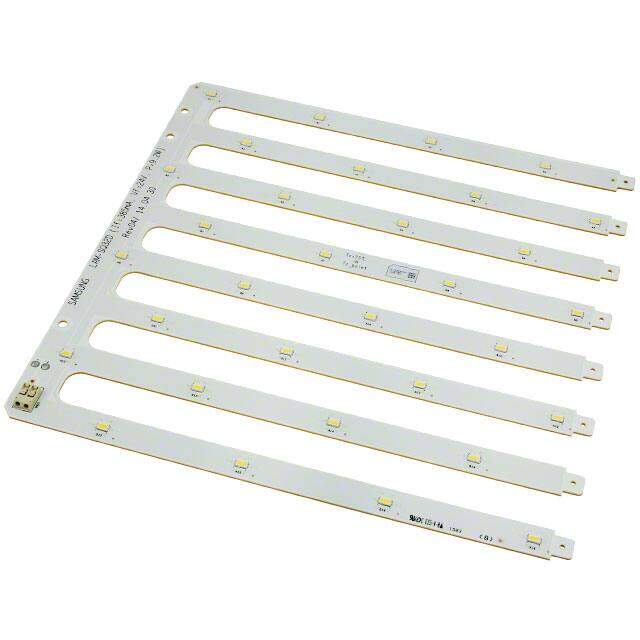

SI-B8P09626001
RoHS
/
Package /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED 6500K 80CRI LM561B
PDF
/
Inventory: 6839
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Packaging Tray
Published 2014
Series Finger-SQ32B
Size / Dimension 259.00mm Lx250.00mm W
Feature With Connector
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type LED Module
Color White, Cool
Configuration Rectangle
Max Current Rating 600mA
Voltage - Forward (Vf) (Typ) 24V
Viewing Angle 115°
Current - Test 385mA
Lens Style Flat
Lumens/Watt @ Current - Test 149 lm/W
CCT (K) 6500K 4-Step MacAdam Ellipse
CRI (Color Rendering Index) 80
Forward Voltage 24V
Current - Max 600mA
Lens Type Flat
Temperature - Test 35°C
Flux @ Current/Temperature - Test 1380lm Typ
Dimensions
Height 5.80mm
Length 259mm
Width 250mm
Compliance
RoHS Status RoHS Compliant
