2701694
RoHS
/
Package /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description

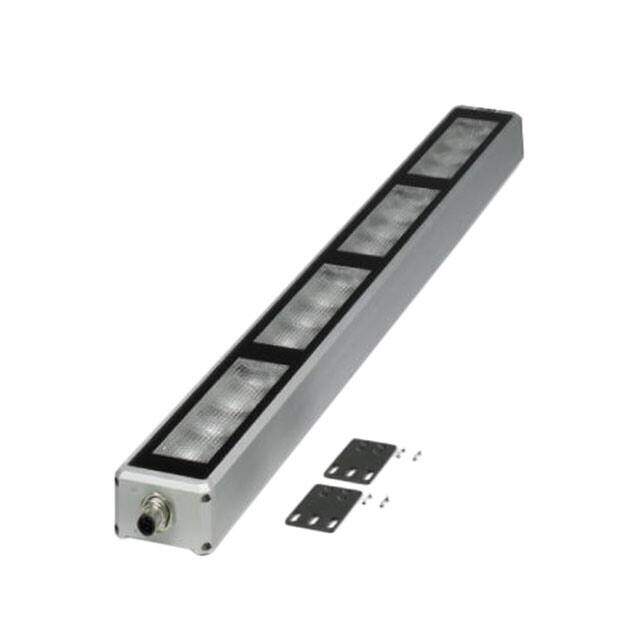

LED Lighting Mounting Accessories PLD M 360 W-100 695
PDF
/
Inventory: 1133
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 35.00mm
Technical
Flux @ Current/Temperature - Test 1815lm Typ
Temperature - Test 55°C
Lens Type Flat
CRI (Color Rendering Index) 80
CCT (K) 5000K
Lumens/Watt @ Current - Test 50 lm/W
Current - Test 1.5A
Viewing Angle 100°
Voltage - Forward (Vf) (Typ) 24V
Configuration Rectangle
Color White, Cool
Type LED Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature With Connector
Size / Dimension 695.00mm Lx60.00mm W
Supply Chain
Factory Lead Time 3 Weeks
