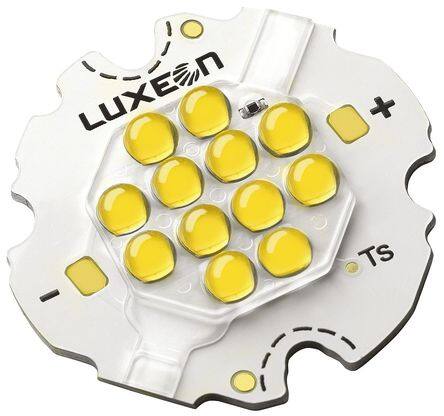

LXK8-PW40-0024

Lumileds
RoHS
/
Package SMD/SMT
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description LUMILEDS LXK8-PW40-0024 High Brightness LED, LUXEON K Series, Neutral White, 100 , 2475 lm, 4000 K, 1.05 A
PDF
/
Inventory: 4636
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown

Dimensions

Height 3.42mm

Technical

Number of LEDs 24
Luminous Flux 2.475 klm
Lens Color White
Flux @ Current/Temperature - Test 2860lm Typ
Temperature - Test 85°C
Lens Type Domed
CRI (Color Rendering Index) 80
CCT (K) 4000K 3-Step MacAdam Ellipse
Lumens/Watt @ Current - Test 130 lm/W
Current - Test 350mA
Forward Current 1.05A
Viewing Angle 100°
Voltage - Forward (Vf) (Typ) 63V
Max Current Rating 1.05A
Configuration Round
Color White, Neutral
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type LED Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 30.00mm Dia
Series LUXEON K
Published 2012
Packaging Tray

Physical

Package / Case SMD/SMT
