LXK8-PW27-0024
RoHS
/
Package SMD/SMT
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description

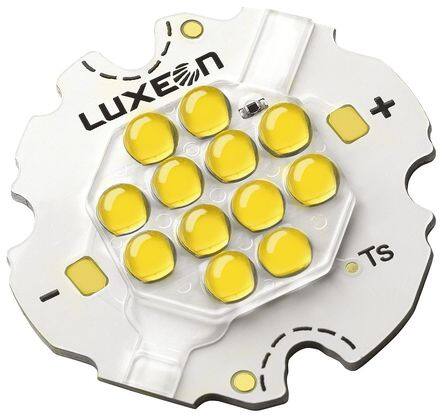

LUMILEDS LXK8-PW27-0024 High Brightness LED, LUXEON K Series, Warm White, 100 , 2090 lm, 2700 K, 1.05 A
PDF
/
Inventory: 7211
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Package / Case SMD/SMT
Technical
Packaging Tray
Published 2011
Series LUXEON K
Size / Dimension 30.00mm Dia
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type LED Module
Color White, Warm
Configuration Round
Max Current Rating 1.05A
Voltage - Forward (Vf) (Typ) 63V
Viewing Angle 100°
Forward Current 1.05A
Current - Test 350mA
Lumens/Watt @ Current - Test 109 lm/W
CCT (K) 2700K 3-Step MacAdam Ellipse
CRI (Color Rendering Index) 80
Lens Type Domed
Temperature - Test 85°C
Flux @ Current/Temperature - Test 2400lm Typ
Lens Color White
Luminous Flux 2.09 klm
Number of LEDs 24
Dimensions
Height 3.42mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
