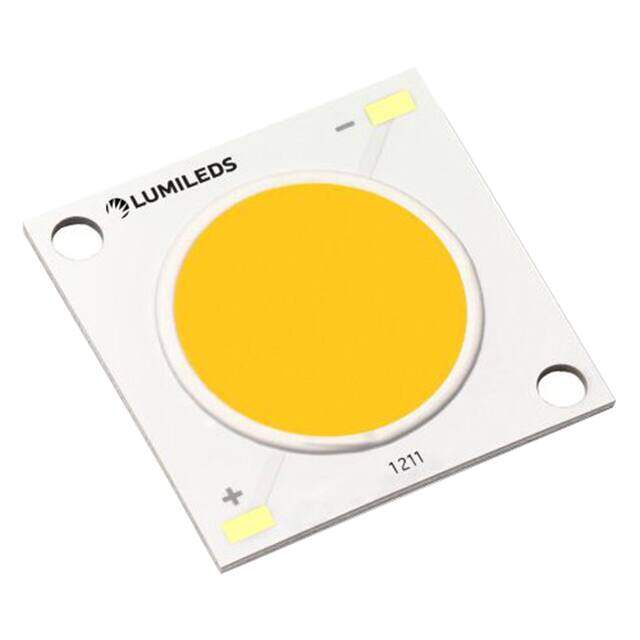

LHC1-4080-1211
RoHS
/
Package SMD/SMT
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED 4000K 80CRI WHT SMD
PDF
/
Inventory: 3553
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Screw, Surface Mount
Package / Case SMD/SMT
Number of Pins 2
Technical
Packaging Tube
Published 2015
Series LUXEON CoB
Size / Dimension 28.00mm Lx28.00mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Chip On Board (COB)
Max Operating Temperature 120°C
Min Operating Temperature -40°C
Color White, Neutral
Configuration Square
Max Current Rating 2.4A
Voltage - Forward (Vf) (Typ) 35.5V
Viewing Angle 115°
Current - Test 1.2A
Lens Style Circular, Flat, Round
Lumens/Watt @ Current - Test 122 lm/W
CCT (K) 4000K
CRI (Color Rendering Index) 80
Lens Type Flat
Temperature - Test 85°C
Flux @ Current/Temperature - Test 5200lm Typ
Luminous Flux 5.2 klm
Light Emitting Surface (LES) 18.50mm Dia
Number of LEDs 1
Dimensions
Height 1.50mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
