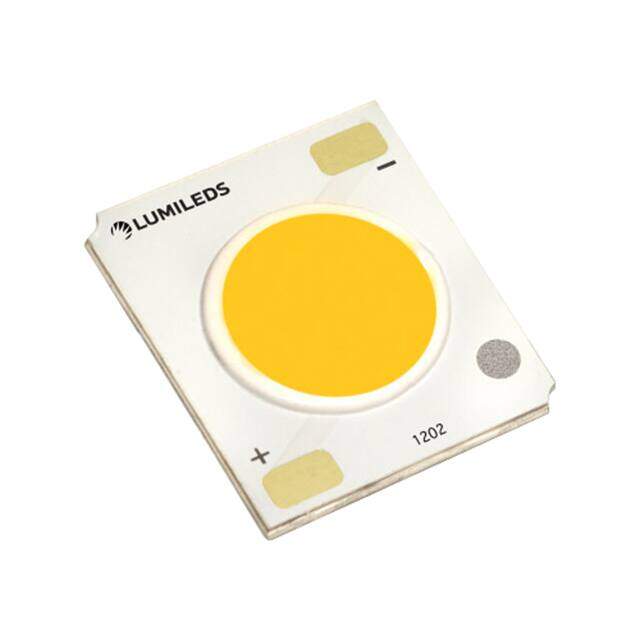

LHC1-4080-1202

Lumileds
RoHS
/
Package SMD/SMT
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description LED 4000K 80CRI WHT SMD
PDF
/
Buying Options
Total Price: USD $6
Unit Price: USD $6.0016
≥1 USD $6.0016
≥10 USD $5.62144
Inventory: 47
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Mount Surface Mount
Package / Case SMD/SMT
Number of Pins 2

Technical

Packaging Tube
Published 2015
Series LUXEON CoB
Size / Dimension 19.00mm Lx16.00mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Chip On Board (COB)
Color White, Neutral
Configuration Rectangle
Max Current Rating 400mA
Voltage - Forward (Vf) (Typ) 35.5V
Viewing Angle 115°
Current - Test 200mA
Lens Style Flat, Round
Lumens/Watt @ Current - Test 120 lm/W
CCT (K) 4000K (Typ) 3-Step MacAdam Ellipse
CRI (Color Rendering Index) 80
Lens Type Flat
Temperature - Test 85°C
Flux @ Current/Temperature - Test 850lm Typ
Luminous Flux 850 lm
Light Emitting Surface (LES) 9.00mm Dia
Number of LEDs 1

Dimensions

Height 1.50mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
