L2M0-5770004MC3300
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description

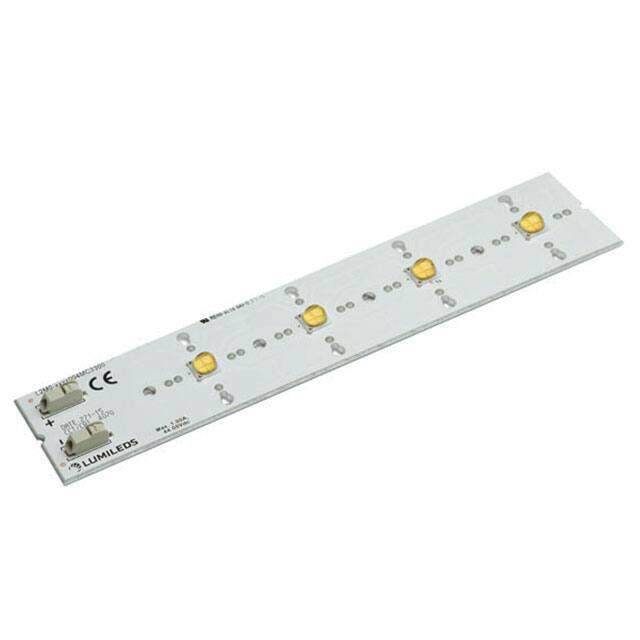

LED XR-M 5700K 4-UP LINEAR
PDF
/
Inventory: 5201
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Technical
Packaging Tray
Published 2015
Series LUXEON XR-M
Size / Dimension 165.00mm Lx33.00mm W
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type LED Module
Color White, Cool
Configuration Linear Light Strip
Max Current Rating 1.05A
Voltage - Forward (Vf) (Typ) 43.8V
Current - Test 700mA
Lumens/Watt @ Current - Test 141 lm/W
CCT (K) 5700K
CRI (Color Rendering Index) 70
Lens Type Domed
Temperature - Test 85°C
Flux @ Current/Temperature - Test 4318lm Typ
Dimensions
Height 6.21mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
