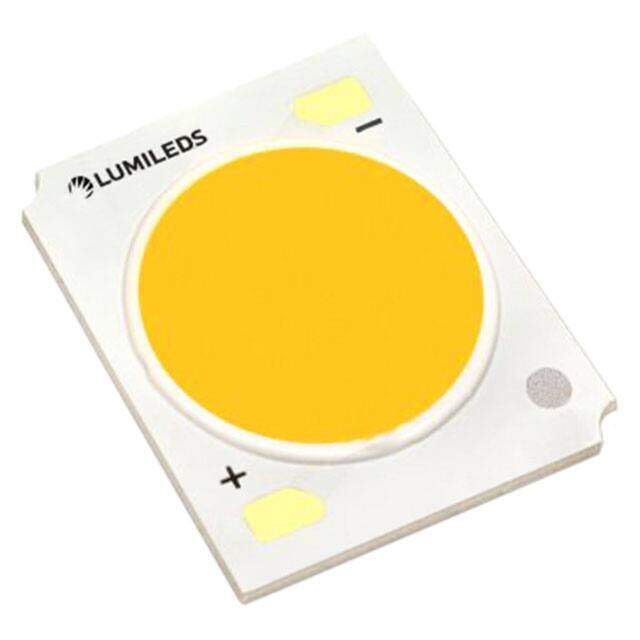

L2C5-40701208E1500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED COB CORE RANGE GEN3 NW RECT
PDF
/
Buying Options
Total Price: USD $9.55
Unit Price: USD $9.545429
≥1 USD $9.545429
≥10 USD $9.005124
≥100 USD $8.495394
≥500 USD $8.014526
≥1000 USD $7.560872
Inventory: 1171
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 1.50mm
Technical
Number of LEDs 1
Light Emitting Surface (LES) 15.00mm Dia
Luminous Flux 4.9 klm
Flux @ Current/Temperature - Test 4900lm Typ
Temperature - Test 85°C
Lens Type Flat
CRI (Color Rendering Index) 70
CCT (K) 4000K 3-Step MacAdam Ellipse
Lumens/Watt @ Current - Test 156 lm/W
Lens Style Circular, Flat
Current - Test 900mA
Viewing Angle 115°
Voltage - Forward (Vf) (Typ) 34.8V
Max Current Rating 1.8A
Configuration Rectangle
Color White, Neutral
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Type Chip On Board (COB)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 20.00mm Lx24.00mm W
Series LUXEON CoB Core Range Gen 3
Published 2016
Packaging Tube
Physical
Mount Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
