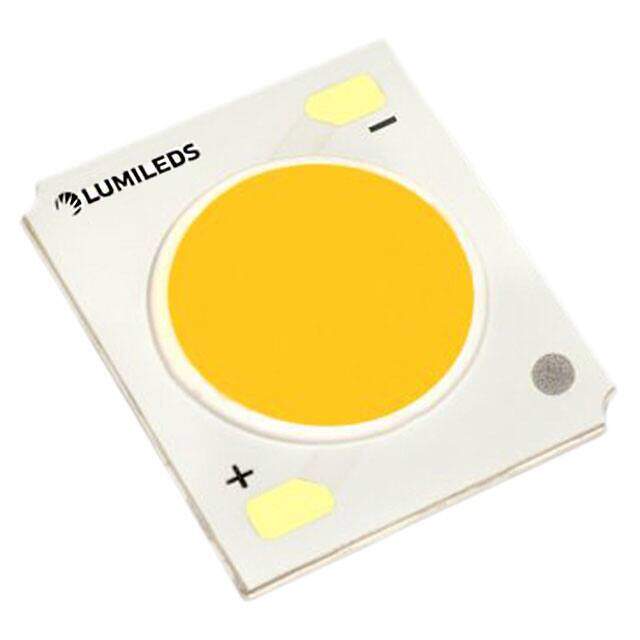

L2C5-35801204E1300
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED COB CORE RANGE GEN3 WW RECT
PDF
/
Buying Options
Total Price: USD $9.11
Unit Price: USD $9.111448
≥1 USD $9.111448
≥10 USD $8.595716
≥100 USD $8.10916
≥500 USD $7.650153
≥1000 USD $7.217119
Inventory: 1157
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 1.50mm
Technical
Light Emitting Surface (LES) 13.00mm Dia
Flux @ Current/Temperature - Test 2244lm Typ
Temperature - Test 85°C
Lens Type Flat
CRI (Color Rendering Index) 80
CCT (K) 3500K 3-Step MacAdam Ellipse
Lumens/Watt @ Current - Test 143 lm/W
Current - Test 450mA
Viewing Angle 115°
Voltage - Forward (Vf) (Typ) 34.8V
Max Current Rating 900mA
Configuration Rectangle
HTS Code 8541.40.20.00
Color White, Warm
Type Chip On Board (COB)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 20.00mm Lx24.00mm W
Series LUXEON CoB Core Range Gen 3
Published 2016
Packaging Tube
Supply Chain
Factory Lead Time 6 Weeks
