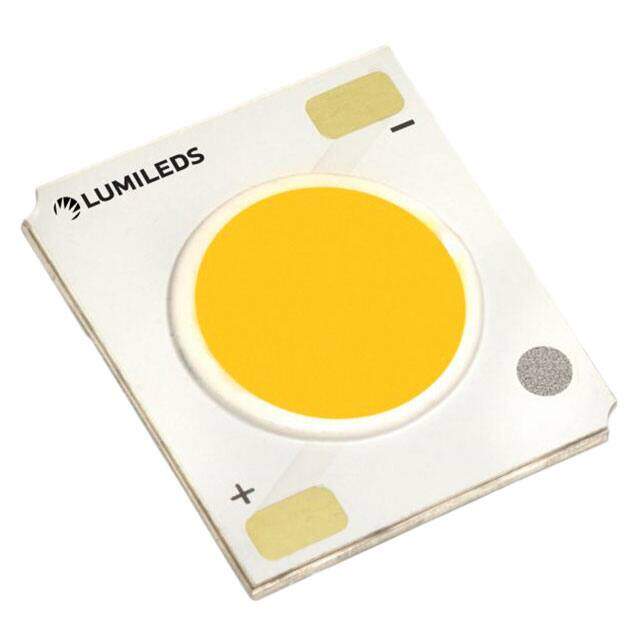

L2C5-35801203E0900
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED COB CORE RANGE GEN3 WW RECT
PDF
/
Buying Options
Total Price: USD $7.73
Unit Price: USD $7.725104
≥1 USD $7.725104
≥200 USD $3.082689
≥500 USD $2.97897
≥1000 USD $2.92908
Inventory: 1174
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Technical
Packaging Tube
Published 2016
Series LUXEON CoB Core Range Gen 3
Size / Dimension 16.00mm Lx19.00mm W
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Chip On Board (COB)
Color White, Warm
HTS Code 8541.40.20.00
Configuration Rectangle
Max Current Rating 600mA
Voltage - Forward (Vf) (Typ) 34.5V
Viewing Angle 115°
Current - Test 300mA
Lumens/Watt @ Current - Test 141 lm/W
CCT (K) 3500K 3-Step MacAdam Ellipse
CRI (Color Rendering Index) 80
Lens Type Flat
Temperature - Test 85°C
Flux @ Current/Temperature - Test 1461lm Typ
Light Emitting Surface (LES) 9.00mm Dia
Dimensions
Height 1.50mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
