L2C5-30801202EH600
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description

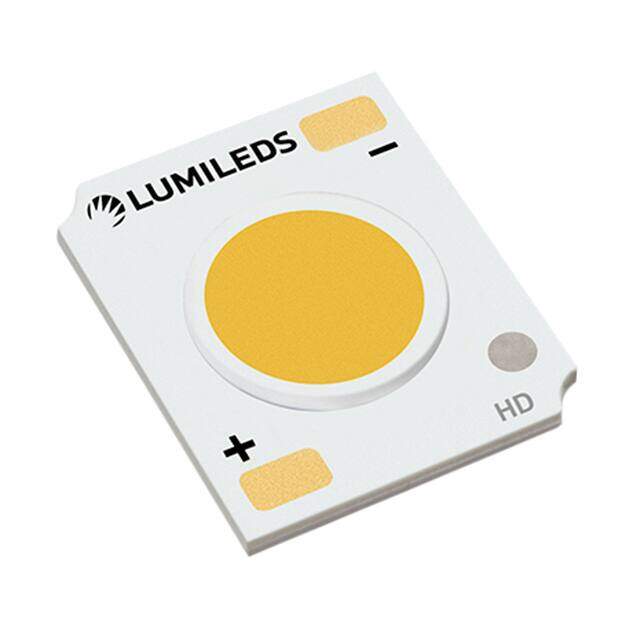

LED COB WARM WHT 3000K RECTANGLE
PDF
/
Buying Options
Total Price: USD $3.99
Unit Price: USD $3.9864
≥1 USD $3.9864
≥10 USD $2.81952
≥100 USD $2.309032
≥500 USD $1.946542
≥1000 USD $1.78545
≥3000 USD $1.711618
Inventory: 217
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Technical
Packaging Tube
Series LUXEON CoB Core Range
Size / Dimension 12.00mm Lx15.00mm W
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Chip On Board (COB)
Color White, Warm
HTS Code 8541.40.20.00
Reach Compliance Code compliant
Configuration Rectangle
Voltage - Forward (Vf) (Typ) 37V
Viewing Angle 115°
Current - Test 350mA
Lumens/Watt @ Current - Test 112 lm/W
CCT (K) 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index) 80
Current - Max 700mA
Lens Type Flat
Temperature - Test 85°C
Flux @ Current/Temperature - Test 1450lm Typ
Light Emitting Surface (LES) 6.50mm Dia
Dimensions
Height 1.50mm
Compliance
RoHS Status RoHS Compliant
