L2C2-35901211E1900
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description

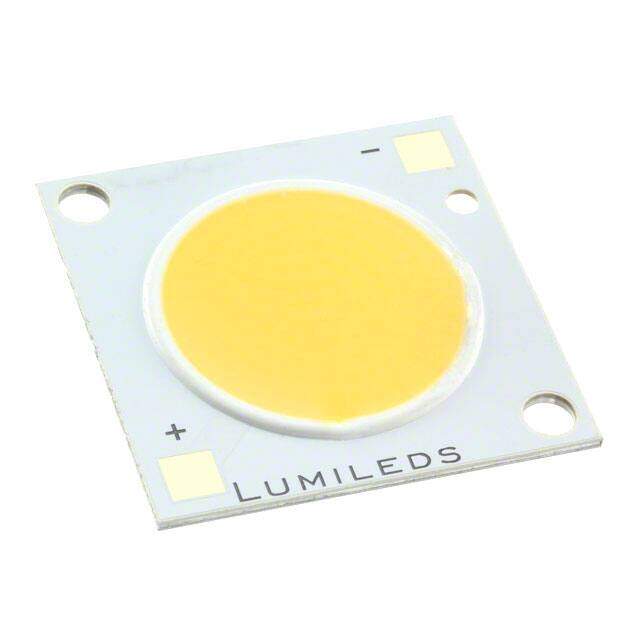

Lumileds L2C2-35901211E1900, LUXEON CoB Gen2 White CoB LED, 3500K 90CRI
PDF
/
Inventory: 4854
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 1.50mm
Technical
Light Emitting Surface (LES) 18.50mm Dia
Luminous Flux 4.801 klm
Flux @ Current/Temperature - Test 4801lm Typ
Temperature - Test 85°C
Lens Type Flat
CRI (Color Rendering Index) 90
CCT (K) 3500K 3-Step MacAdam Ellipse
Lumens/Watt @ Current - Test 114 lm/W
Current - Test 1.2A
Forward Current 2.4A
Viewing Angle 115°
Voltage - Forward (Vf) (Typ) 35V
Max Current Rating 2.4A
Configuration Square
HTS Code 8541.40.20.00
Color White, Warm
Type Chip On Board (COB)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 28.00mm Lx28.00mm W
Series LUXEON CoB Core Range
Published 2015
Packaging Tube
Supply Chain
Factory Lead Time 8 Weeks
