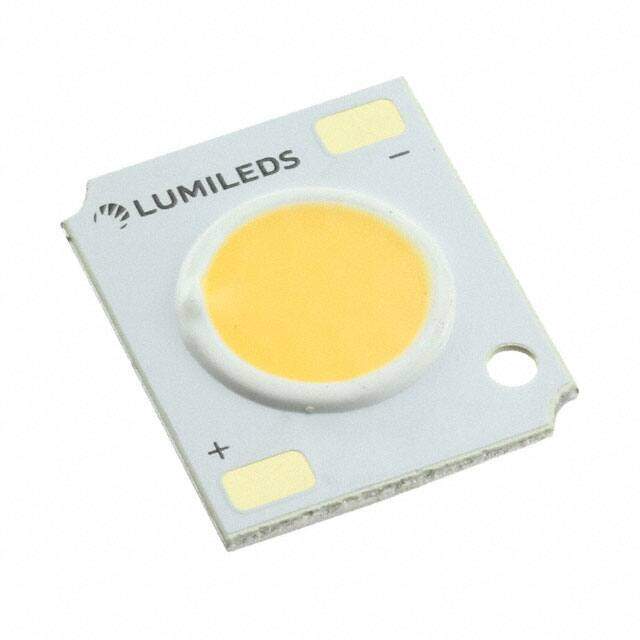

L2C2-30901202E0900
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED COB 1202 3000K WW 90CRI SMD
PDF
/
Inventory: 7864
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 1.50mm
Technical
Number of LEDs 1
Light Emitting Surface (LES) 9.00mm Dia
Luminous Flux 796 lm
Flux @ Current/Temperature - Test 796lm Typ
Temperature - Test 85°C
Lens Type Flat
CRI (Color Rendering Index) 90
CCT (K) 3000K 3-Step MacAdam Ellipse
Lumens/Watt @ Current - Test 115 lm/W
Lens Style Circular, Flat
Current - Test 200mA
Viewing Angle 115°
Voltage - Forward (Vf) (Typ) 34.5V
Max Current Rating 400mA
Configuration Rectangle
Color White, Warm
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Type Chip On Board (COB)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 16.00mm Lx19.00mm W
Series LUXEON CoB Core Range
Published 2016
Packaging Tube
Physical
Mount Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
