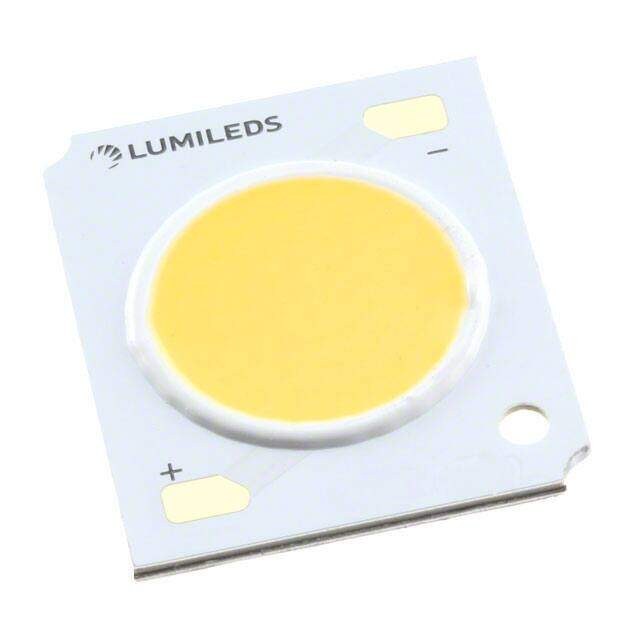

L2C2-27901208E1500 image
Favorite
L2C2-27901208E1500 image
Favorite

L2C2-27901208E1500

Lumileds
RoHS
RoHS RoHS compliant
Package /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description Lumileds L2C2-27901208E1500, LUXEON CoB Gen2 White CoB LED, 2700K 90CRI
PDF
/
Inventory: 7783
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Height 1.50mm

Technical

Number of LEDs 1
Light Emitting Surface (LES) 15.00mm Dia
Luminous Flux 3.362 klm
Flux @ Current/Temperature - Test 3362lm Typ
Temperature - Test 85°C
Lens Type Flat
CRI (Color Rendering Index) 90
CCT (K) 2700K 3-Step MacAdam Ellipse
Lumens/Watt @ Current - Test 107 lm/W
Lens Style Circular, Flat
Current - Test 900mA
Forward Current 1.8A
Viewing Angle 115°
Voltage - Forward (Vf) (Typ) 35V
Max Current Rating 1.8A
Configuration Rectangle
Color White, Warm
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Type Chip On Board (COB)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 20.00mm Lx24.00mm W
Series LUXEON CoB Core Range
Published 2015
Packaging Tube

Physical

Mount Surface Mount

Supply Chain

Factory Lead Time 8 Weeks
