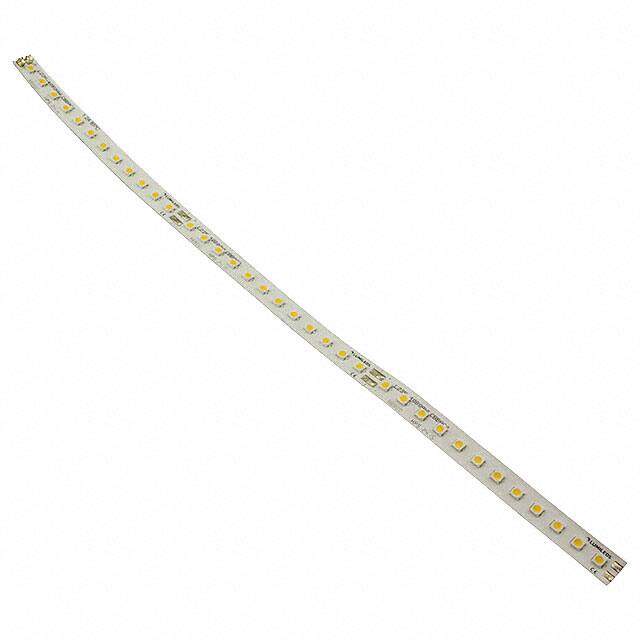

L235-4080AHLCBBAC0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED LUXEON MATRIX 4000K
PDF
/
Buying Options
Total Price: USD $12.16
Unit Price: USD $12.1616
≥1 USD $12.1616
≥10 USD $9.171184
≥100 USD $7.703696
Inventory: 162
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Technical
Packaging Strip
Published 2014
Series LUXEON XF-3535L
Size / Dimension 300.00mm Lx10.00mm W
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type LED Module
Color White, Neutral
Configuration Linear Light Strip, Flexible
Max Current Rating 1.2A
Voltage - Forward (Vf) (Typ) 18V
Current - Test 600mA
Lens Style Flat
Lumens/Watt @ Current - Test 147 lm/W
CCT (K) 4000K
CRI (Color Rendering Index) 80
Forward Voltage 18V
Current - Max 1.2A
Lens Type Flat
Temperature - Test 25°C
Flux @ Current/Temperature - Test 1584lm Typ
Dimensions
Height 1.23mm
Length 300mm
Width 10mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
