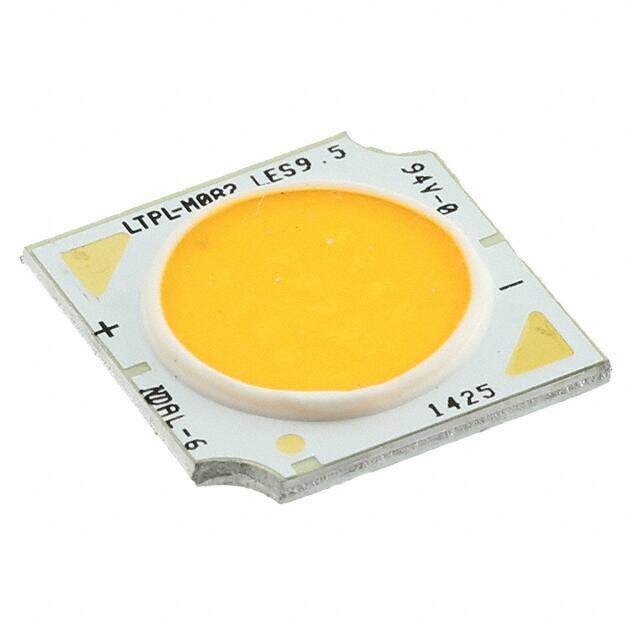

LTPL-M08210ZS30-T0
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED COB CCT 3000K 80CRI 16W SMD
PDF
/
Inventory: 5590
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 1.80mm
Technical
Number of LEDs 24
Light Emitting Surface (LES) 9.50mm Dia
Luminous Flux 1.033 klm
Flux @ Current/Temperature - Test 1070lm Typ
Temperature - Test 25°C
Lens Type Flat
CRI (Color Rendering Index) 80
CCT (K) 3000K 3-Step MacAdam Ellipse
Lumens/Watt @ Current - Test 122 lm/W
Lens Style Circular, Flat
Current - Test 240mA
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 36.5V
Max Current Rating 400mA
Configuration Square
HTS Code 8541.40.20.00
Color White, Warm
Type Chip On Board (COB)
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 13.50mm Lx13.50mm W
Series LTPL-M08
Published 2014
Packaging Tube
Physical
Package / Case SMD/SMT
Supply Chain
Factory Lead Time 12 Weeks
