NT-45D0-0447
RoHS
/
Package /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description

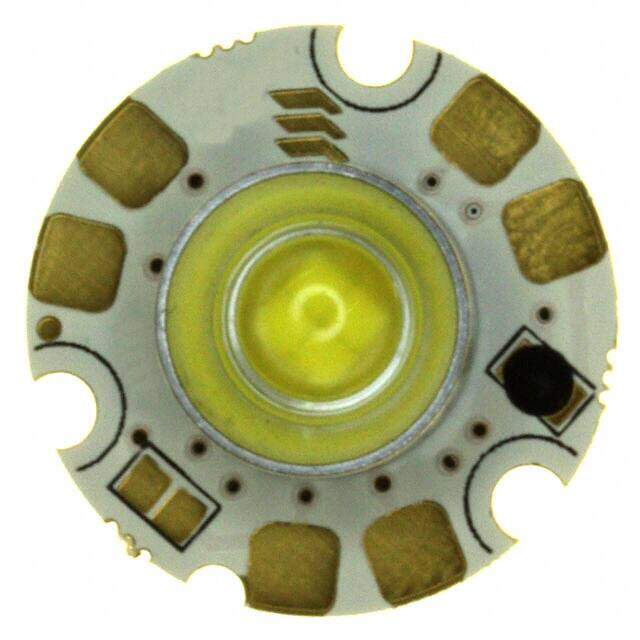

LIGHT ENGINE ATLAS DAYLIGHT WHT
PDF
/
Inventory: 2404
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 4.32mm
Diameter 20.32mm
Technical
Number of LEDs 1
Luminous Flux 164 lm
Flux @ Current/Temperature - Test 164lm Typ
Temperature - Test 25°C
Illumination Color White
Lens Type Domed
Current - Max 1.05A
Forward Voltage 6.6V
CRI (Color Rendering Index) 62
CCT (K) 4700K
Lumens/Watt @ Current - Test 36 lm/W
Lens Style Domed
Current - Test 700mA
Forward Current 700mA
Viewing Angle 60°
Voltage - Forward (Vf) (Typ) 6.6V
Max Current Rating 1.05A
Configuration Round
Operating Supply Voltage 7.6V
Color White, Neutral
Type LED Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 20.32mm Dia
Series Atlas?
Published 2008
Packaging Tray
Physical
Shape Circular
