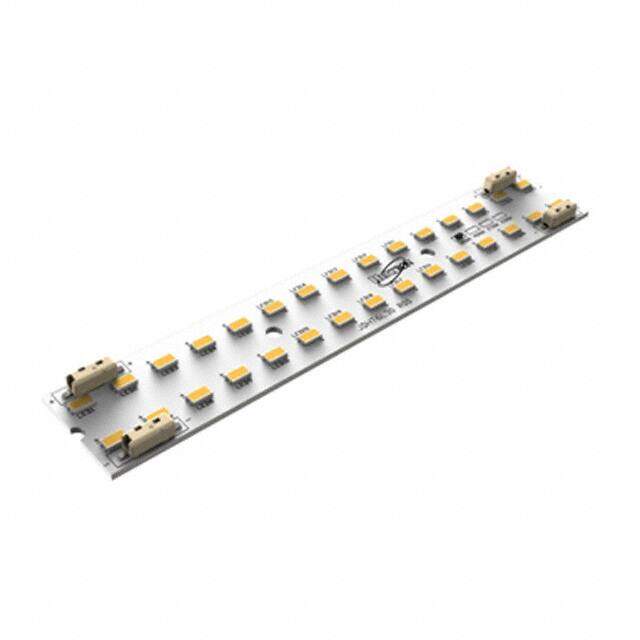

JDHT-LMP06-E5435-80 image
Favorite
JDHT-LMP06-E5435-80 image
Favorite

JDHT-LMP06-E5435-80

Heatron Inc.
RoHS
/
Package Module
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description BOARD LED LIN 6X1.05" 30LED
PDF
/
Inventory: 4247
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Package / Case Module

Technical

Published 2014
Series VeraLine
Size / Dimension 152.40mm Lx26.67mm W
Feature With Connector
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type LED Module
Color White, Warm
Configuration Linear Light Strip
Max Current Rating 700mA
Voltage - Forward (Vf) (Typ) 14V
Current - Test 350mA
Lens Style Flat
Lumens/Watt @ Current - Test 143 lm/W
CCT (K) 3500K 3-Step MacAdam Ellipse
CRI (Color Rendering Index) 80
Forward Voltage 14V
Current - Max 700mA
Lens Type Flat
Temperature - Test 25°C
Flux @ Current/Temperature - Test 703lm Typ

Dimensions

Height 6.00mm
Length 152.4mm
Width 26.67mm

Compliance

RoHS Status RoHS Compliant
