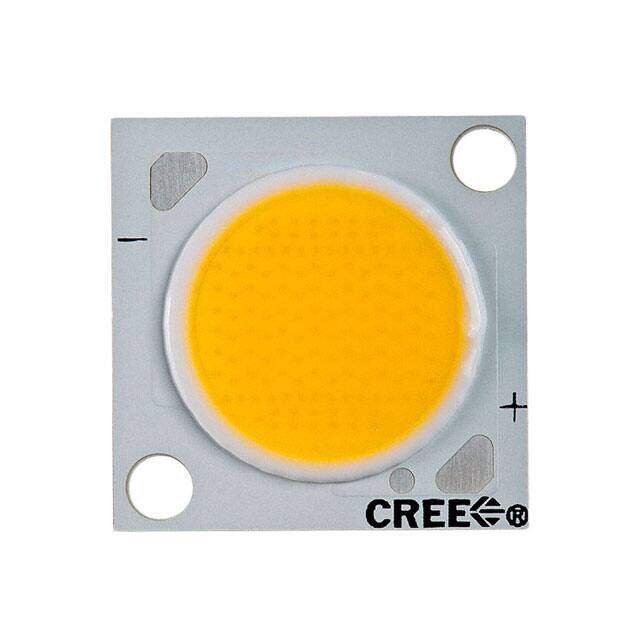

CXA2011-0000-000P00F00E8
RoHS
/
Package /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED COB CXA2011 WARM WHT SQUARE
PDF
/
Inventory: 3468
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Screw
Number of Pins 2
Shape ROUND
Technical
Packaging Tube
Series XLamp? CXA2011
Size / Dimension 22.00mm Lx22.00mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Type Chip On Board (COB)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color White, Warm
Number of Functions 1
Depth 22mm
Base Part Number CXA2011
Number of Elements 1
Configuration Square
Max Current Rating 1A
Voltage - Forward (Vf) (Typ) 40V
Viewing Angle 120°
Forward Current 270mA
Lumens/Watt @ Current - Test 68 lm/W
CCT (K) 2700K
CRI (Color Rendering Index) 80
Lens Type Flat
Illumination Color White
Temperature - Test 85°C
Flux @ Current/Temperature - Test 730lm 680lm~780lm
Luminous Flux 680 lm
Dimensions
Height 2.28mm
Compliance
RoHS Status RoHS Compliant
