CXA1850-0000-000N0UU250F
RoHS
/
Package /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description

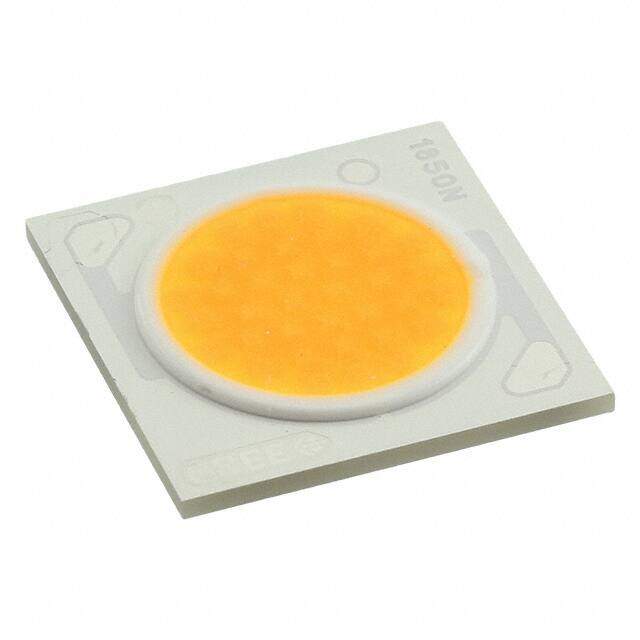

LED COB CXA1850 COOL WHT SQUARE
PDF
/
Inventory: 9486
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Packaging Tray
Series XLamp? CXA1850
Size / Dimension 17.85mm Lx17.85mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Chip On Board (COB)
Color White, Cool
Configuration Square
Max Current Rating 2.1A
Voltage - Forward (Vf) (Typ) 35V
Viewing Angle 115°
Current - Test 1.4A
Lumens/Watt @ Current - Test 78 lm/W
CCT (K) 5000K 4-Step MacAdam Ellipse
CRI (Color Rendering Index) 90
Lens Type Flat
Temperature - Test 85°C
Flux @ Current/Temperature - Test 3818lm 3680lm~3955lm
Light Emitting Surface (LES) 12.00mm Dia
Dimensions
Height 1.55mm
Compliance
RoHS Status RoHS Compliant
