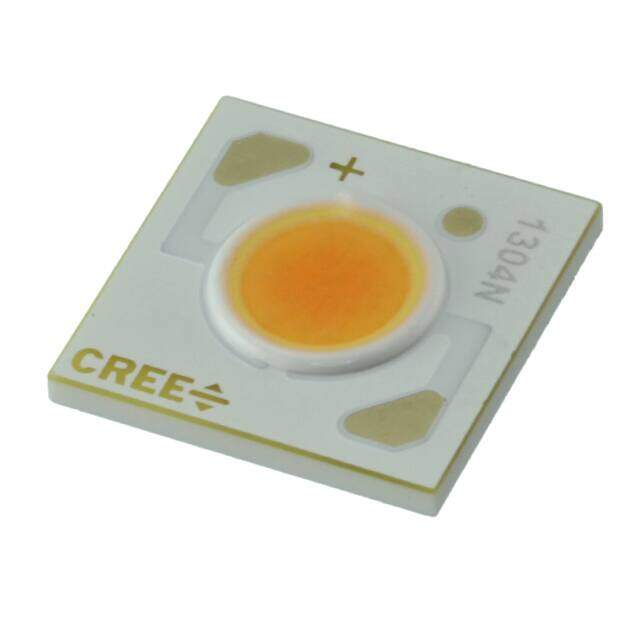

CXA1304-0000-000N00A427F
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED COB CXA1304 WARM WHT SQUARE
PDF
/
Buying Options
Total Price: USD $3.82
Unit Price: USD $3.820539
≥1 USD $3.820539
≥200 USD $1.52559
≥500 USD $1.474387
≥1000 USD $1.449442
Inventory: 1272
Minimum: 1
-
+
Technical Details
Technical
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color White, Warm
Subcategory Visible LEDs
Depth 13.35mm
Base Part Number CXA1304
Number of Elements 1
Configuration Square
Max Current Rating 250mA
Voltage - Forward (Vf) (Typ) 37V
Viewing Angle 115°
Forward Current 250mA
Current - Test 100mA
Lumens/Watt @ Current - Test 100 lm/W
CCT (K) 2700K 4-Step MacAdam Ellipse
CRI (Color Rendering Index) 80
Lens Type Flat
Illumination Color White
Flux @ Current/Temperature - Test 368lm 355lm~380lm
Luminous Flux 355 lm
Light Emitting Surface (LES) 6.00mm Dia
Type Chip On Board (COB)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 13.35mm Lx13.35mm W
Series XLamp? CXA1304
Packaging Tray
Dimensions
Height 1.70mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Number of Pins 2
Package / Case SMD/SMT
Mount Surface Mount
Supply Chain
Factory Lead Time 5 Weeks
