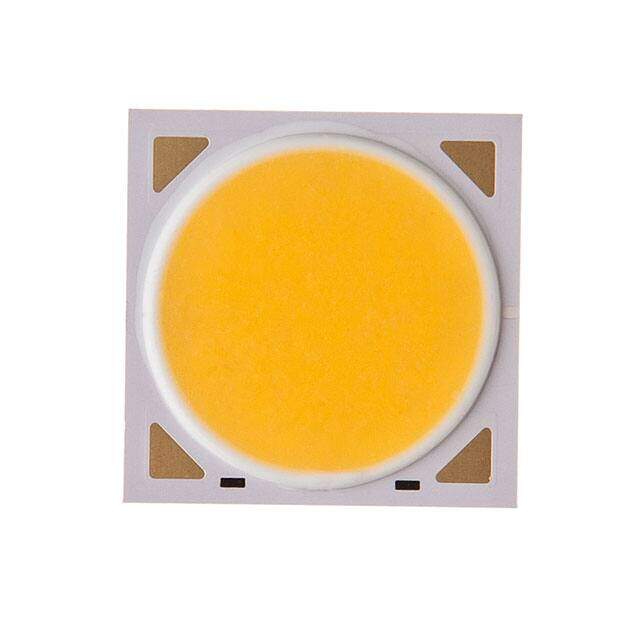

BXRE-27G2000-C-23
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED ARRAY 2000LM WARM WHITE COB
PDF
/
Inventory: 2287
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 15.8mm
Length 15.8mm
Height 1.70mm
Technical
Light Emitting Surface (LES) 13.40mm Dia
Flux @ Current/Temperature - Test 1461lm Typ
Temperature - Test 85°C
Lens Type Flat
Current - Max 1.05A
Forward Voltage 31.3V
CRI (Color Rendering Index) 90
CCT (K) 2700K 3-Step MacAdam Ellipse
Lumens/Watt @ Current - Test 93 lm/W
Lens Style Flat
Current - Test 500mA
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 31.3V
Max Current Rating 1.05A
Configuration Square
Power Rating 16.2W
Color White, Warm
Type Chip On Board (COB)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 15.80mm Lx15.80mm W
Series V Series?
Published 2015
Packaging Tray
Supply Chain
Factory Lead Time 4 Weeks
