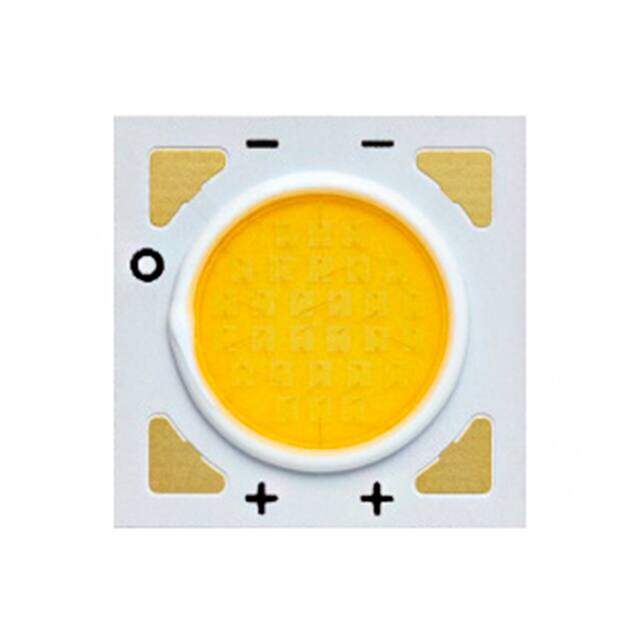

BXRE-27E0800-E-73
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
V8E WARM WHITE LED ARRAY
PDF
/
Inventory: 8625
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Technical
Published 2017
Series Gen 7 V8 Array
Size / Dimension 12.50mm Lx12.50mm W
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Chip On Board (COB)
Color White, Warm
Configuration Square
Voltage - Forward (Vf) (Typ) 33.4V
Viewing Angle 120°
Current - Test 175mA
Lumens/Watt @ Current - Test 134 lm/W
CCT (K) 2700K 3-Step MacAdam Ellipse
CRI (Color Rendering Index) 80
Current - Max 350mA
Lens Type Flat
Temperature - Test 85°C
Flux @ Current/Temperature - Test 787lm Typ
Light Emitting Surface (LES) 8.10mm Dia
Dimensions
Height 1.70mm
Compliance
RoHS Status RoHS Compliant
