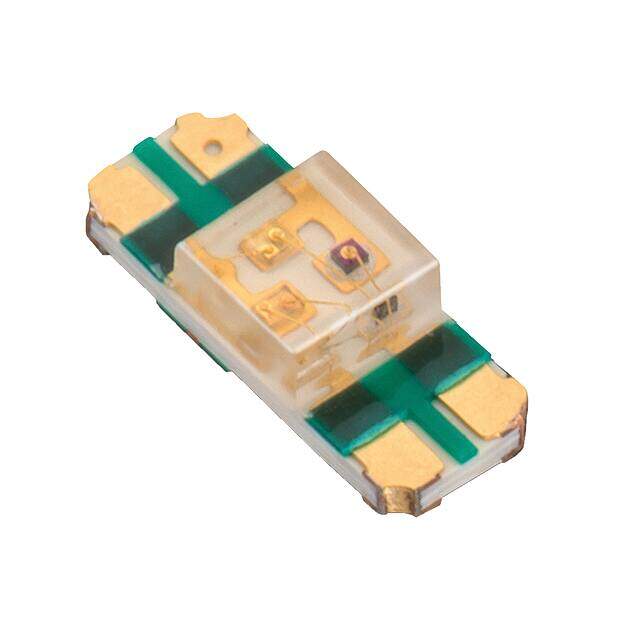

156125M173000
RoHS
/
Package 4-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED RGB CLEAR 4SMD BOTTOM ENTRY
PDF
/
Buying Options
Total Price: USD $0.96
Unit Price: USD $0.956793
≥1 USD $0.956793
≥10 USD $0.902632
≥100 USD $0.851549
≥500 USD $0.803337
≥1000 USD $0.757872
Inventory: 1156
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Surface Mount, Bottom Entry
Package / Case 4-SMD, No Lead
Supplier Device Package 4-SMD
Technical
Packaging Tape & Reel (TR)
Series WL-SFRW
Size / Dimension 3.20mm Lx1.20mm W
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Red, Green, Blue (RGB)
Configuration Common Anode
Voltage - Forward (Vf) (Typ) 2V Red 3.3V Green 3.3V Blue
Viewing Angle 120°
Current - Test 20mA Red 20mA Green 20mA Blue
Lens Style Square with Flat Top
Lens Size 1.20mm
Millicandela Rating 80mcd Red, 280mcd Green, 70mcd Blue
Lens Transparency Clear
Wavelength - Peak 632nm Red 520nm Green 468nm Blue
Lens Color Colorless
Reverse Voltage 5V
Wavelength - Dominant 624nm Red 525nm Green 470nm Blue
Dimensions
Height 800μm
Height (Max) 0.80mm
Compliance
RoHS Status RoHS Compliant
