VAOL-S8RP4
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Optoelectronics / LED Indication - Discrete
Description

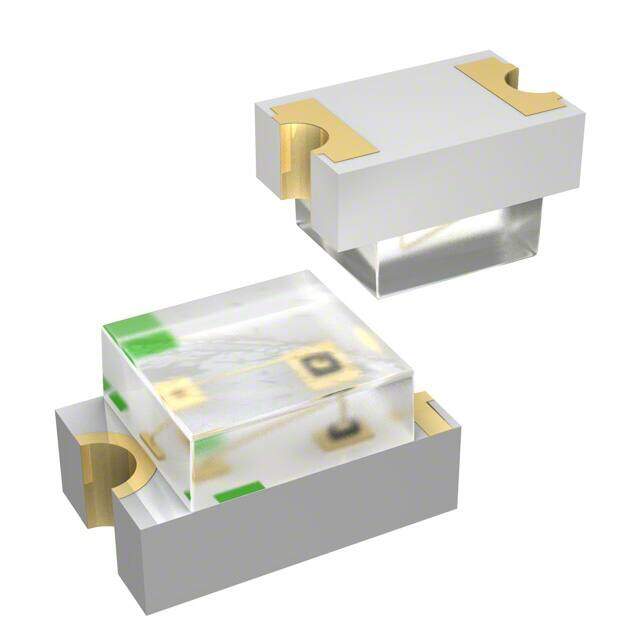

VCC (VISUAL COMMUNICATIONS COMPANY) VAOL-S8RP4 LED, RED, 1.25MM X 1.4MM, 123MCD, 624NM
PDF
/
Buying Options
Total Price: USD $0.53
Unit Price: USD $0.528
≥1 USD $0.528
≥10 USD $0.34672
≥100 USD $0.229328
≥500 USD $0.177047
≥1000 USD $0.159984
Inventory: 793
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 1.3mm
Technical
Wavelength - Dominant 624nm
Lens Color Colorless
Wavelength - Peak 632nm
Lens Transparency Clear
Millicandela Rating 69mcd
Luminous Intensity 123 mcd
Lens Size 2.00mmx1.25mm
Lens Style Rectangle with Flat Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 140°
Voltage - Forward (Vf) (Typ) 2V
Configuration Standard
Case Code (Imperial) 0805
Case Code (Metric) 2012
Power Rating 60mW
Color Red
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Size / Dimension 2.00mm Lx1.25mm W
Published 2009
Packaging Tape & Reel (TR)
Physical
Number of Pins 2
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 4 Weeks
